GSM40B09-P1J
13.16

GSM40B09-P1J

$13.16

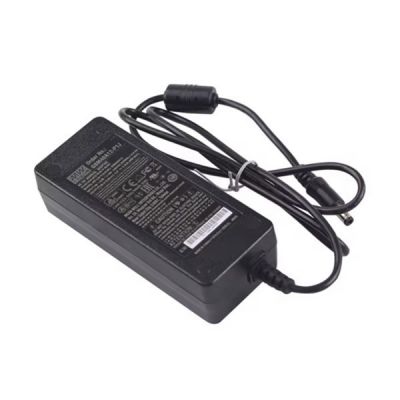

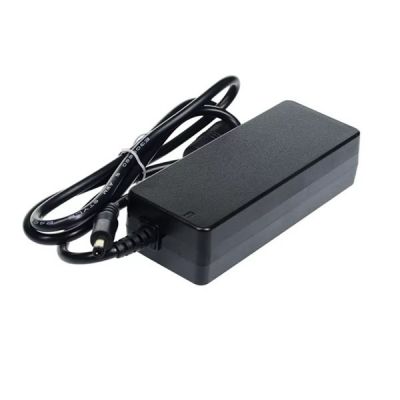

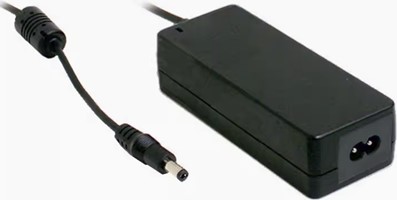

Meanwell 40W AC-DC Reliable Green Medical Adaptor with 9V4.45A0-4.45A40W100mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GSM40B09-P1J
Brand Meanwell
Details

Meanwell GSM40B09 is a 40W AC-DC Green Medical Adaptor with 9V4.45A0-4.45A40W100mVp-p. The item highlights single- output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. GSM40B09 adopts the input range from 80VAC to 264VAC with output voltage 9VDC, so that it could satisfy the demands for various kinds of medical electrical devices. At the same time, the circuitry design meets the international medical standards (2*MOPP), having an ultra-low-leakage current (<50uA), and thus fits the medical devices indirect electrical contact with the patients. The work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.1W. In addition, GSM40B09 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product utilizes the 94V-0 flame retardant plastic case, offering the double insulation, which effectively prevents electrical shock. It is also approved with the international medical safety certificates. In light of its longevity, high efficiency, and excellent performance, Meanwell GSM40B09 serves as an ideal power supply solution for various types of medical electronic device.

Meanwell GSM40B09 Price and Specs 40W AC-DC Medical Adaptor GSM40B05 07 09 12 15 18 24 48 2 pole AC Inlet YCICT

Meanwell GSM40B09-P1J Encoding

GSM Series Name
40 Rated Wattage
B IEC320-C8 AC Inlet
9 Output voltage

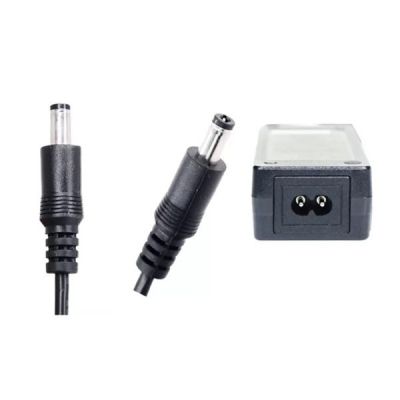

P1J- DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре
Other Options available by customer requested

Meanwell GSM40B09-P1J Specifications

ORDER NO. GSM40B09-P1J
OUTPUT SAFETY MODEL NO. GSM40B09
DC VOLTAGE 9V
RATED CURRENT 4.45A
CURRENT RANGE 0-4.45A
RATED POWER (max) 40W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE TIME 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 50ms / 230VAC 24ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT (Typ.) 1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 50 A/264VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 9.4-12.2V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
OPERATING ALTITUDE 3000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version),
PSE J60950-1(48V only),KC K60950-1(48V only), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 3505.7K hrs min. Telcordia SR-332 (Bellcore) ; 719.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 125*50*31.5mm (L*W*H)
PACKING 0.29Kg; 40pcs/12.6Kg/1.04CUFT

Meanwell GSM40B09-P1J Feature

l  3 years warranty

l  Extremely low leakage current

l  No load power consumption<0.1 W

l  Comply with Korea K-MEPS (only GSM40B48-P1J)

l  -30~+70℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  LED indicator for power on

l  Lifetime > 90K hours

l  Various DC plug quick adapter accessory available

l  2 pole AC inlet lEC320-C8, Class II power unit

l  Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)

l  Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1

Meanwell GSM40B09 Price and Specs 40W AC-DC Medical Adaptor GSM40B05 07 09 12 15 18 24 48 2 pole AC Inlet 9v YCICT

Meanwell GSM40B09-P1J Applications

l  Mobile clinical workstation

l  Oral irrigator

l  Portable hemodialysis machine

l  Breath Machine

l  Medical computer monitor

Meanwell GSM40B09 Price and Specs 40W AC-DC Medical Adaptor GSM40B05 07 09 12 15 18 24 48 2 pole AC Inlet 4.45a YCICT

Meanwell GSM40B09-P1J Mechanical Diagram

Meanwell GSM40B09 Price and Datasheet 40W AC-DC Medical Adaptor GSM40B05 07 09 12 15 18 24 48 2 pole AC Inlet 9v YCICT
