GSM40A05-P1J
13.04

GSM40A05-P1J

$13.04

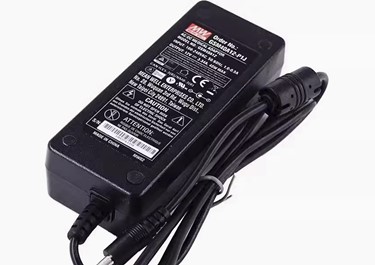

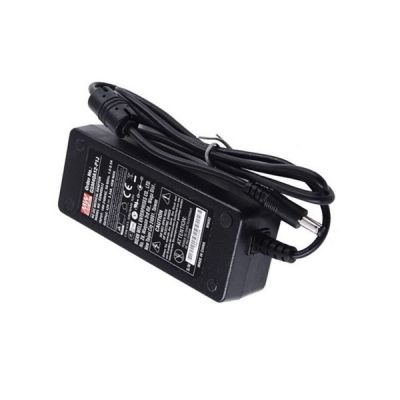

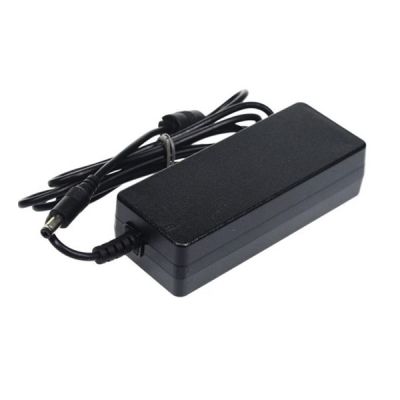

Meanwell 40W AC-DC Reliable Green Medical Adaptor with 5V5A0.1-5A25W80mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GSM40A05-P1J
Brand Meanwell
Details

Meanwell GSM40A05 is a 40W single-output green medical adaptor with 5V5A0.1-5A25W80mVp-p. The model is a class I power unit (with FG), equipped with a standard lEC320-C14 AC inlet. At the same time, GSM40A05 adopts the input range from 80VAC to 264VAC with output voltage 5VDC. So that it could satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<90uA), fitting the medical devices in direct electrical contact with the patients. Moreover, the work efficiency reaches high up to 91% and extremely low no-load power consumption below 0.15W. GSM40A05 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. It utilizes the 94V-0 flame retardant plastic case, which is certified for the international medical safety regulations. Due to its high reliability, high efficiency, and excellent performance, Meanwell GSM40A05 serves as an ideal power supply solution for various types of medical electronic devices.

Meanwell GSM40A05 Price and Specs 40W AC-DC Medical Adaptor GSM40A05--P1J 07 09 12 15 18 24 48 Class I YCICT

Meanwell GSM40A05-P1J Encoding

GSM Series Name
40 Rated Wattage
A European 2 pin AC Plug

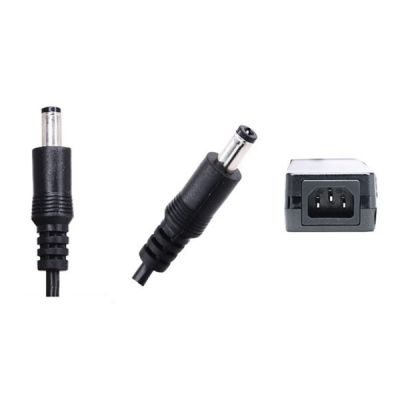

5 IEC320-C14 AC inlet
Р1J- DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM40A05-P1J Specifications

ORDER NO. GSM40A05-P1J
OUTPUT SAFETY MODEL NO. GSM40A05
DC VOLTAGE 5V
RATED CURRENT 5A
CURRENT RANGE 0.1-5A
RATED POWER (max) 25W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE TIME 1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 50ms / 230VAC 24ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81.00%
AC CURRENT (Typ.) 1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.) Cold start 30A/115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Earth leakage current < 90 A/264VAC , Touch current < 90 A/264VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.2-7.0V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25!/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 3613.2K hrs min. Telcordia SR-332 (Bellcore) ; 740.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 125*50*31.5mm (L*W*H)
PACKING 0.29Kg; 40pcs/ 12.6 Kg/1.04CUFT

Meanwell GSM40A05-P1J Features

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Extremely low leakage current

l  No load power consumption<0. 15W

l  Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)

l  -30~+70℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  LED indicator for power on

l  Lifetime>90K hours

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Meanwell GSM40A05 Price and Specs 40W AC-DC Medical Adaptor GSM40A05--P1J 07 09 12 15 18 24 48 5v 5a YCICT

Meanwell GSM40A05-P1J Applications

l  Mobile clinical workstation

l  Oral irrigator

l  Portable hemodialysis machine

l  Breath Machine

l  Medical computer monitor

Meanwell GSM40A05 Price and Specs 40W AC-DC Medical Adaptor GSM40A05--P1J 07 09 12 15 18 24 48 5v 5a Class I  YCICT

Meanwell GSM40A05-P1J Mechanical Diagram

Meanwell GSM40A05 Price and Datasheet 40W AC-DC Medical Adaptor GSM40A05--P1J 07 09 12 15 18 24 48 5v 5a Class I YCICT
