GSM36B07-P1J
12.07
Details

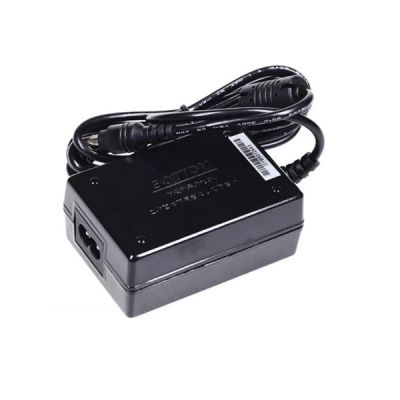

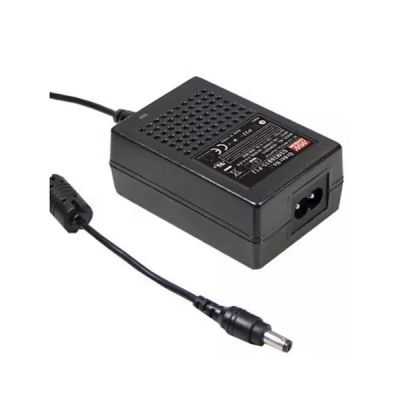

Meanwell GSM36B07 is a 36W AC-DC Reliable Green Medical Adaptor with 7.5V4.32A0-4.32A32.4W80mVp-p. The item outstands single-output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. Meanwhile, GSM36B07 adopts the input range from 80VAC to 264VAC with output voltage 7.5VDC, so that it could satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2xMOPP) with an ultra-low leakage current (<50uA), and thus fits the medical devices in direct electrical contact with the patients. What’s more, the work efficiency reaches high up to 88% and extremely low no-load power consumption below 0.1W. GSM36B07 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU Erp and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby. In addition, the model utilizes the 94V-0 flame retardant plastic case, offering the double insulation which effectively prevents electrical shock. it is approved with the international medical safety certificates as well. Thanks to its longevity, high efficiency, and excellent performance, Meanwell GSM36B07 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM36B07-P1J Encoding
| GSM | Series Name |
| 36 | Rated Wattage |
| B | IEC320-C8 2 Pin AC Inlet |
| 7 | Output voltage |
| P1J- DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре |
| Other Options available by customer requested |
Meanwell GSM36B07-P1J Specifications
| ORDER NO. | GSM36B07-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM36B07 |
| DC VOLTAGE | 7.5V | |
| RATED CURRENT | 4.32A | |
| CURRENT RANGE | 0-4.32A | |
| RATED POWER | 32.4W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms / 230VAC 10ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT | 0.9A / 115VAC 0.45A / 230VAC | |
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 170% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 7.88-10.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22 3rd Edition, TUV BS EN/EN60601-1 / BS EN/EN60601-1-11, EAC TP TC 004 approved |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 235g ; 60pcs / 15.1Kg / CARTON | |
Meanwell GSM36B07-P1J Features
l 2 pole AC inlet IEC320-C8, ClassⅡpower unit
l Extremely low leakage current
l No load power consumption<0.1 W
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
l Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V)
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11, BS EN/EN60601-1/-1-11
Meanwell GSM36B07-P1J Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
Meanwell GSM36B07-P1J Mechanical Diagram
