GSM220B20-R7B
27.81
Details

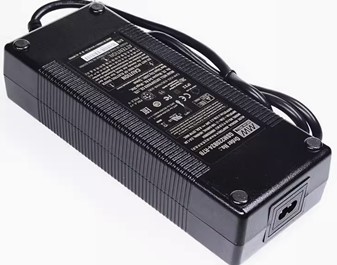

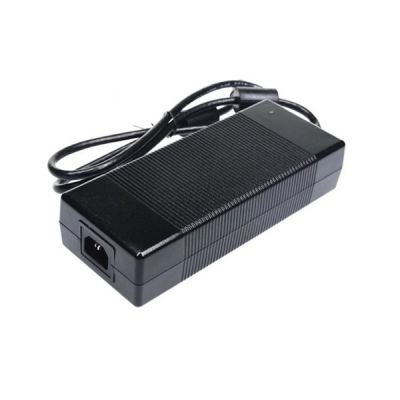

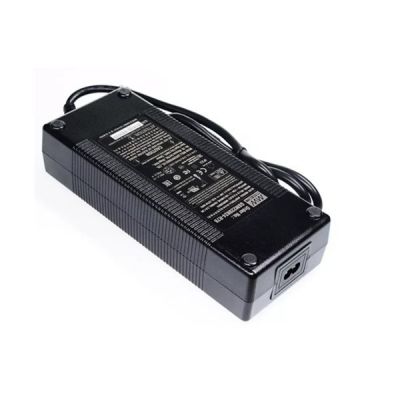

Meanwell GSM220B20 is a 220W AC-DC Green Medical Adaptor with 20V11A0-11A220W120mVp-p. The item outstands desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. GSM220B20 adopts the input range from 80VAC to264VAC with output voltage 20VDC, so that it could satisfy the demands for various kinds of medical electrical devices. At the same time, the circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100uA), and fitting the medical devices indirect electrical contact with the patients. Furthermore, the efficiency reaches high up to 94.5% and extremely low no-load power consumption below 0.15W. GSM220B20 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Additionally, the product utilizes the 94V-0 flame retardant plastic case, providing the double insulation, which effectively prevents electrical shock. It is approved with the international medical safety certificates as well. In light of its longevity, high efficiency, and excellent performance, Meanwell GSM220B20 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM220B20-R7B Encoding
| GSM | Series Name |
| 220 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 20 | Output Voltage |

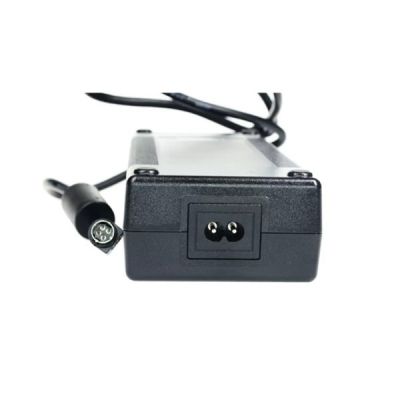

| R7B- DC plug type | R7B: Stаndаrd mоdеl, Power DIN 4Pin with lock type |
| Other Options available by customer requested |
Meanwell GSM220B20-R7B Specifications
| ORDER NO. | GSM220B20-R7B | |
| OUTPUT | SAFETY MODEL NO. | GSM220B20 |
| DC VOLTAGE | 20V | |
| RATED CURRENT | 11A | |
| CURRENT RANGE | 0-11A | |
| RATED POWER (max.) | 220W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±4.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 24ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.91 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT | 4A / 115VAC 2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 90A / 115VAC 110A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| OPERATING ALTITUDE | 3000 meters | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004, KC K60950-1 (for GSM220B24 only) approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 1953.3K hrs min. Telcordia SR-332 (Bellcore) ; 208.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 210*85*46mm (L*W*H) | |
| PACKING | 1.1Kg; 12pcs/14.2Kg/0.81CUFT | |
Meanwell GSM220B20-R7B Features
l 3 years warranty
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l LED indicator for power on
l Lifetime > 70K hours
l 2 pole AC inlet lEC320-C8, ClassⅡpower unit
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
Meanwell GSM220B20-R7B Applications
l Mobile clinical workstation
l Oral irrigator
l Portable hemodialysis machine
l Breath Machine
l Medical computer monitor
Meanwell GSM220B20-R7B Mechanical Diagram
