GSM18U05-P1J
12.03

GSM18U05-P1J

$12.03

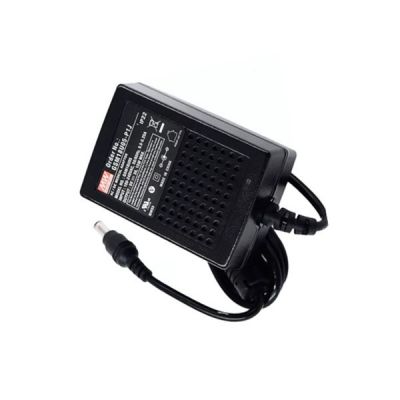

Meanwell 18W AC-DC Reliable Green Medical Adaptor with 5V3.0A0-3.0A15W60mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GSM18U05-P1J
Brand Meanwell
Details

Meanwell GSM18U05 is 18W AC-DC Reliable Green Medical Adaptor with 5V3.0A0-3.0A15W60mVp-p. The model features single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. At the same time, GSM18U05 adopts input range from 80VAC to 264V AC with output voltage 5VDC. Therefore, it could satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. As the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM18U05 is compliant with USA EISA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Additionally, GSM18U05 utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. The item is also approved with the international medical safety certificates. Due to its high safety, high quality and high performance, Meanwell GSM18U05 serves as an ideal power supply solution for various types of medical electronic devices.Meanwell GSM18U05 Price and Specs 18W AC-DC Medical Adaptor GSM18U05 07 09 12 15 18 24 48 Class II Level VI YCICT

Meanwell GSM18U05-P1J Encoding

GSM Series Name
18 Rated Wattage
U US 2 pin AC Plug
5 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM18U05-P1J Specifications

ORDER NO. GSM18U05-P1J
OUTPUT SAFETY MODEL NO. GSM18U05
DC VOLTAGE 5V
RATED CURRENT 3.0A
CURRENT RANGE 0-3.0A
RATED POWER 15W
RIPPLE & NOISE (max.) 60mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT 0.5A / 115VAC 0.25A / 230VAC
INRUSH CURRENT (max.) 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.) Touch current < 50μA/264VAC
PROTECTION OVERLOAD 105 ~ 170% rated output powe
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.25-7.5V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVA
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 185g ; 60pcs / 12.1Kg / CARTON

Meanwell GSM18U05-P1J Features

l  2 pole USA plug, Class II power unit

l  Extremely low leakage current

l  No load power consumption<0.1 W

l  Energy efficiency Level VI (except 5~9V for Level V)

l  -25~+60℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11

Meanwell GSM18U05 Price and Specs 18W AC-DC Medical Adaptor GSM18U05 07 09 12 15 18 24 48 Class II Level VI  5V 3A YCICT

Meanwell GSM18U05-P1J Applications

l  Blood qlucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

Meanwell GSM18U05 Price and Specs 18W AC-DC Medical Adaptor GSM18U05 07 09 12 15 18 24 48 Class II Level VI  5V YCICT

Meanwell GSM18U05-P1J Mechanical Diagram

Meanwell GSM18U05 Price and Datasheet 18W AC-DC Medical Adaptor GSM18U05 07 09 12 15 18 24 48 Class II Level VI  YCICT
