GSM160B24-R7B
25.32
Details

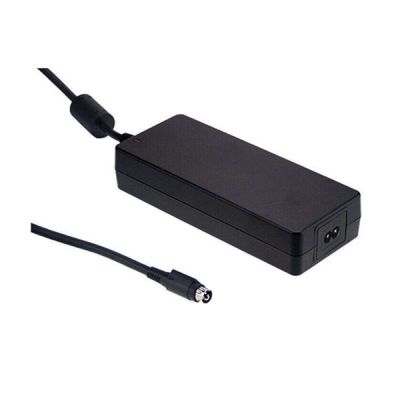

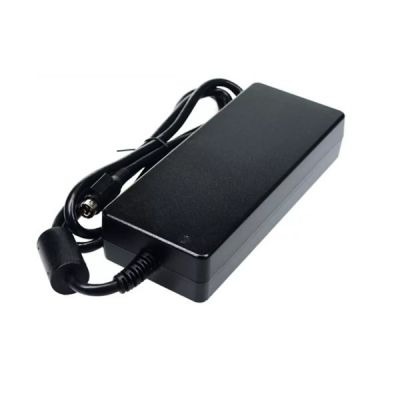

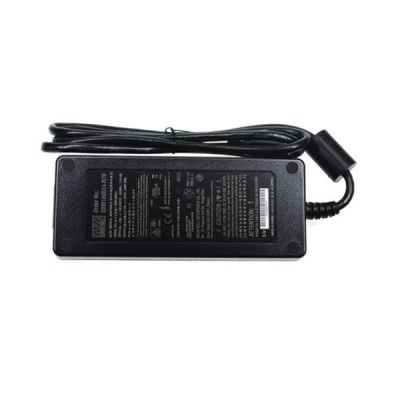

Meanwell GSM160B24 is a 160W AC-DC Green Medical Adaptor with 24V6.67A0-6.67A160W120mVp-p. The product highlights desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. GSM160B24 adopts input range from 80VAC to 264VAC with output voltage 24VDC, so that it could satisfy the demands for various kinds of medical electrical devices. At the same time, the circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100uA), and thus fits the medical devices in direct electrical contact with the patients. In addition, the efficiency reaches high up to 94% and extremely low no-load power consumption below 0.15W. GSM160B24 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. Apart from them, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. It also utilizes the 94V-0 flame retardant plastic case, providing the double insulation, which effectively prevents electrical shock. It is approved with the international medical safety certificates as well. In view of its longevity, high efficiency, and excellent performance, Meanwell GSM160B24 serves as an ideal power supply solution for various types of medical electronic device.
Meanwell GSM160B24-R7B Encoding
| GSM | Series Name |
| 160 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 24 | Output Voltage |
| R7B- DC plug type | R7B: Stаndаrd mоdеl, Power DIN 4Pin with lock type |
| Other Options available by customer requested |
Meanwell GSM160B24-R7B Specifications
| ORDER NO. | GSM160B24-R7B | |
| OUTPUT | SAFETY MODEL NO. | GSM160B24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 6.67A | |
| CURRENT RANGE | 0-6.67A | |
| RATED POWER | 160W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| HOLD UP TIME (Typ.) | 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load | |
| SETUP, RISE, HOLD UP TIME | 24ms / 230VAC 24ms / 115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 12V/15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT | 1.85A / 115VAC 1A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 90A / 115VAC 110A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |
| OPERATING ALTITUDE | 3000 meters | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |
| Others | MTBF | 2191.3K hrs min. Telcordia SR-332 (Bellcore) ; 239.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 175*72*35mm (L*W*H) | |
| PACKING | 0.66Kg; 20pcs/14.2Kg/0.95CUFT | |
Meanwell GSM160B24-R7B Features
l 3 years warranty
l LED indicator for power on
l Lifetime >110K hours
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l 2 pole AC inlet lEC320-C8, Class II power unit
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Various DC plug quick adapter accessory available
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-1 1
Meanwell GSM160B24-R7B Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine
Meanwell GSM160B24-R7B Mechanical Diagram
