GSM12U48-P1J
13.73

GSM12U48-P1J

$13.73

Meanwell 12W AC-DC Reliable Green Medical Adaptor with 48V0.25A0-0.25A12W100mVp-p±2.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell GSM12U48-P1J
Brand Meanwell
Details

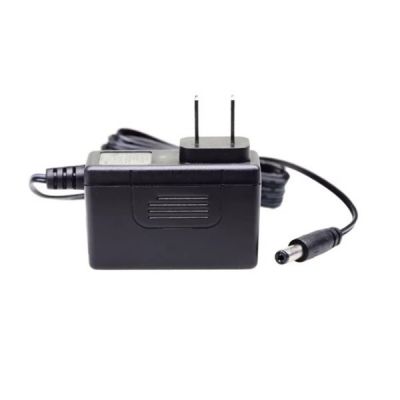

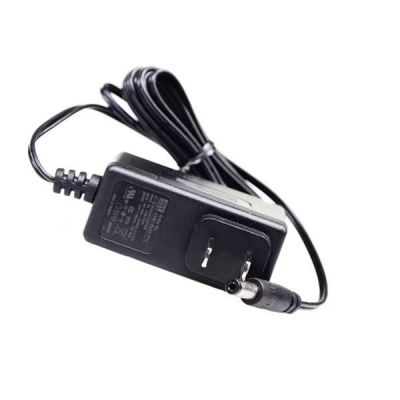

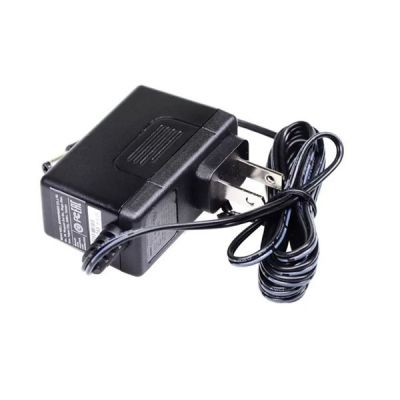

Meanwell GSM12U48 is a 12W AC-DC Reliable Green Compact Medical Adaptor with 48V0.25A0-0.25A12W100mVp-p. The model outstands single-output, wall-mounted style and convenient for carry. It is equipped with the standard 2-pin U.S. plug. At the same time, GSM12U48 is a class II power unit (no FG), accepting input range from 80VAC to 264VAC. Thus, this can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP) with ultra-low leakage current (<100uA), fitting medical devices in direct electrical contact with the patients. As the working efficiency reaches high up to 87% and extremely low no-load power consumption below 0.075W (<0.1W for 18V/48V), GSM12U48 is compliant with the latest USA energy regulation EISA2007/DoE (LeveI VI). The supreme feature permits the adaptor to save energy when it is under either operating mode or standby mode. Apart from them, the item is approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which effectively prevents users from electric hazard. Thanks to its high safety, high quality and high performance, Meanwell GSM12U48 serves as an ideal power supply solution for various types of medical electronic devices.Meanwell GSM12U48 Price and Datasheet 12W AC-DC Green Medical Adaptor GSM12U05 07 09 12 15 18 24 48 48V Level VI YCICT

Meanwell GSM12U48-P1J Encoding

GSM Series Name
12 Rated Wattage
U US 2 pin AC Plug
48 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
USB: USB (type A) for 5V model Only
Other Options available by customer requested

Meanwell GSM12U48-P1J Specifications

ORDER NO. GSM12U48-P1J
OUTPUT SAFETY MODEL NO. GSM12U48
DC VOLTAGE 48V
RATED CURRENT 0.25A
CURRENT RANGE 0-0.25A
RATED POWER 12W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms, 16ms/230VAC 500ms, 30ms, 16ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87.00%
AC CURRENT 0.4A / 115VAC 0.2A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 100μA/264VAC
PROTECTION OVERLOAD 110 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 0 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 0 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved GSM12U05-USB without ANSI/ AAMII ES60601-1-11
ISOLATION LEVEL Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE I/P-O/P:5656VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3 years : 100% load 40, 12hours / day
MTBF 400Khrs min. MIL-HDBK-217F(25)
DIMENSION 62.2*27.4*45.5mm (L*W*H)
PACKING 109g, 110pcs / 13kg / CARTON for cable connection ; 73g, 150pcs / 12kg / CARTON for USB connection

Meanwell GSM12U48-P1J Features

l  3 years warranty

l  Extremely low leakage current

l  No load power consumption< 0.075W (<0.1W for 18V/48V)

l  Energy efficiency Level VI

l  -20℃~+70℃ wide range working temperature

l  ClassⅡpower (no earth pin)

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Various DC plug quick adapter accessory available

l  Universal AC input/FulI range

l  Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/ES60601-1-1 1

Meanwell GSM12U48 Price and Specs 12W AC-DC Green Medical Adaptor GSM12U05 07 09 12 15 18 24 48 48V Level VI YCICT

Meanwell GSM12U48-P1J Applications

l  Blood qlucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

l  Sleep apnea devices

Meanwell GSM12U48 Price and Specs 12W AC-DC Green Medical Adaptor GSM12U05 07 09 12 15 18 24 48 0.25A Level VI YCICT

Meanwell GSM12U48-P1J Mechanical Diagram

Meanwell GSM12U48 Price and Specs 12W AC-DC Green Medical Adaptor GSM12U05 07 09 12 15 18 24 48 0.25A 48V YCICT
