GSM12E07-P1J

$12.98

Meanwell 12W AC-DC Reliable Green Medical Adaptor with 7.5V1.6A0-1.6A12W60mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GSM12E07-P1J
Brand Meanwell
Details

Meanwell GSM12E07 is 12W AC-DC Green Medical Adaptor with 7.5V1.6A0-1.6A12W60mVp-p. The unit highlights single-output, wall-mounted, compact and convenient for carry. It is equipped with the standard 2-pin European plug. At the same time, GSM12E07 is a classⅡpower unit (no FG), and adopts the input range from 80VAC to 264VAC. So that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. Moreover, the working efficiency reaches high up to 87% and extremely low no-load power consumption below 0.075W (<0.1W for 18V/48V), GSM12E07 is compliant with EU ErP, and meets CoC version 5 (Except fo18V/48V). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The item is also approved for international safety regulations, and adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazard. Thanks to its high safety, high quality and high efficiency, Meanwell GSM12E07 serves as an ideal power supply solution for various types of medical electronic devices.

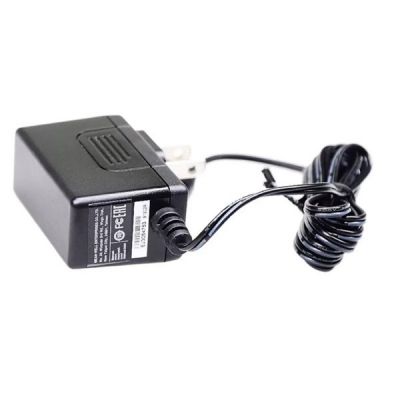

Meanwell GSM12E07 Price and Specs 12W AC-DC Medical Adaptor GSM12U05 07 09 12 15 18 24 48 EURO type ClassⅡ YCICT

Meanwell GSM12E07-P1J Encoding

GSM Series Name
12 Rated Wattage
E European 2 pin AC Plug
7 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type

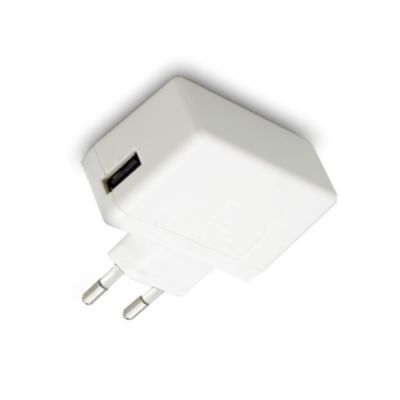

USB: USB  (type A) for 5V model only
Other Options available by customer requested

Meanwell GSM12E07-P1J Specifications

ORDER NO. GSM12E07-P1J
OUTPUT SAFETY MODEL NO. GSM12E07
DC VOLTAGE 7.5V
RATED CURRENT 1.6A
CURRENT RANGE 0-1.6A
RATED POWER 12W
RIPPLE & NOISE (max.) 60mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms, 16ms/230VAC 500ms, 30ms, 16ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 82.00%
AC CURRENT 0.4A / 115VAC 0.2A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 100μA/264VAC
PROTECTION OVERLOAD 110 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 0 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 0 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV BS EN/EN60601-1, BS EN/EN60601-1-11 (3.1 version), IS13252(Part1)/IEC60950-1(for USB only), EAC TP TC 004 approved GSM12E05-USB without BS EN/EN60601-1-11
ISOLATION LEVEL Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE I/P-O/P:5656VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3
Others Life 3 years : 100% load 40, 12hours / day
MTBF 400Khrs min. MIL-HDBK-217F(25)
DIMENSION 62.2*27.4*39.7mm (L*W*H)
PACKING 100g, 90pcs / 10kg / CARTON for cable connection ; 76g, 150pcs / 12.5kg / CARTON for USB connection

Meanwell GSM12E07-P1J Features

l  Universal AC input/Full range

l  Extremely low leakage current

l  No load power consumption< 0.075W(<0.1W for 18V/48V)

l  Energy efficiency Level VI

l  -20℃~+70℃ wide range working temperature

l  ClassⅡ power (no earth pin)

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Medical safety approved (2xMOPP) according to BS EN/EN6O6O1-1/BS EN/EN60601-1-1 1

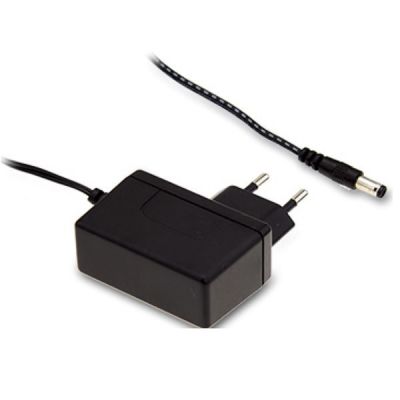

Meanwell GSM12E07 Price and Specs 12W AC-DC Medical Adaptor GSM12U05 07 09 12 15 18 24 48 EURO type Level VI YCICT

Meanwell GSM12E07-P1J Applicatiions

l  Blood glucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

l  Sleep apnea devices

Meanwell GSM12E07 Price and Specs 12W AC-DC Medical Adaptor GSM12U05 07 09 12 15 18 24 48 EURO type 7.5V 1.6A YCICT

Meanwell GSM12E07-P1J Mechanical Diagram

Meanwell GSM12E07 Price and Datasheet 12W AC-DC Medical Adaptor GSM12U05 07 09 12 15 18 24 48 EURO type 7.5V 1.6A YCICT
