GSM06U24-P1J
12.56
Details

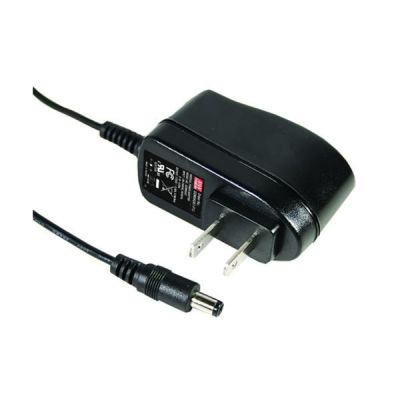

Meanwell GSM06U24 is a 6W AC-DC Reliable Green Medical Adaptor with 24V0.25A0-0.25A6W180mVp-p. The item highlights single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. At the same time, GSM06U24 adopts the input range from 85VAC to 264VAC, offered with output voltage 24VDC. So that it is able to satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP) with ultra-low leakage current (<50uA), which fits the medical devices in direct electrical contact with the patients. Since the efficiency reaches high up to 82% and extreme low no-load power consumption below 0.3W. GSM06U24 is compliant with USA EISA 2007. The supreme feature permits the adaptor to save energy when it is either under operating mode or standby mode. Besides them, the unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GSMO6U24 is approved with the international medical safety certificates as well. Thanks to its high safety, high quality and high performance, Meanwell GSM06U24 serves as an ideal power supply solution for various types of consumer electronic devices.
Meanwell GSM06U24-P1J Encoding
| GSM | Series Name |
| 6 | Rated Wattage |
| U | USA 2 pin AC Plug |
| 24 | Output Voltage |
| P1J | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM06U24-P1J Specifications
| ORDER NO. | GSM06U24-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM06U24 |
| DC VOLTAGE | 24V | |
| RATED CURRENT | 0.25A | |
| CURRENT RANGE | 0-0.25A | |
| RATED POWER | 6W | |
| RIPPLE & NOISE (max.) | 180mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 50ms, 12ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 82.00% | |
| AC CURRENT | 0.18A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 15A / 115VAC 30A / 230VAC | |
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | |
| PROTECTION | OVERLOAD | >105% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.04% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:5656VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 32*66*42.5mm (L*W*H) | |
| PACKING | 100g; 110pcs/12Kg/CARTON | |
Meanwell GSM06U24-P1J Features
l 2 pole USA AC plug, ClassⅡ power unit
l 3 years warranty
l Extremely low leakage current
l No load power consumption< 0.3W
l Energy efficiency Level V
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Various DC plug quick adapter accessory available
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1
Meanwell GSM06U24-P1J Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device
Meanwell GSM06U24-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
