GP25B
7.79

GP25B

As low as $7.79

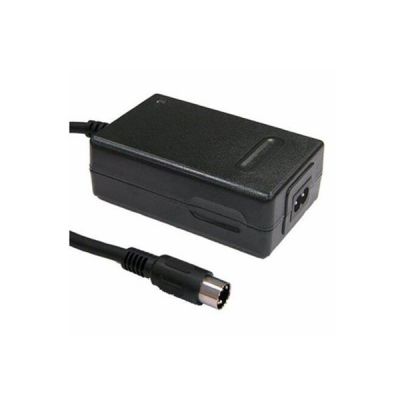

Meanwell 25W AC-DC Triple Output Industrial Adaptor

- +
Availability:In stock
SKU Meanwell GP25B
Brand Meanwell
Details

Meanwell GP25B Series is a 25W green industrial adaptor. The product stands out with triple-output and desktop type. it complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). At the same time, GP25B adopts ClassⅡdesign and utilizes the standard inlet IEC320-C8, it is designed without FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. Meanwell GP25B operates from 90~264VAC and offers three models with output voltage sets +5V/+12V/-5V, +5V/+12V/-12V, +5V/+15V/-15V and can option +16V/+48V/-16V. Apart from them, its supreme advantages includes less-than -0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. Addition, the item meets with the international safety certification such as CB, TUV, UL, CE and FCC. Considering its high safety, high reliability and high quality, Meanwell GP25B Series serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell GP25B Price and Specs 25W AC-DC Triple Output Industrial Adaptor plastic case level VI ClassⅡunit YCICT

Meanwell GP25B Series Encoding

GP Series Name
25 Rated Wattage
B IEC320 C14 3pin AC input
13A Output Voltage
R1B DC plug type R1B: Plug for standard model power DIN 5 pin
Other Options available by customer requested

Meanwell GP25B Series Model Specifications

ORDER NO. GP25B13A-R1B GP25B13D-R1B GP25B14E-R1B GP25B58F-R1B (option)
OUTPUT SAFETY MODEL NO. GP25B13A GP25B13D GP25B14E GP25B58F
DC VOLTAGE 5V 12V -5V 5V 12V -12V 5V 15V -15V 16V 48V -16V
RATED CURRENT 2.5A 1.2A 0.3A 2.5A 1A 0.3A 2.5A 0.8A 0.3A 1.05A 0.087A 1.05A
CURRENT RANGE 0.5-2.5A 0.2-1.2A 0.1-0.3A 0.5-2.5A 0.2-1A 0.1-0.3A 0.5-2.5A 0.1-0.8A 0.1-0.3A 0.2-1.05A 17mA-87mA 0.2-1.05A
RATED POWER 28.5W 28W 29W 37.77W
RIPPLE & NOISE (max.) 50mVp-p 100mVp-p 50mVp-p 60mVp-p 120mVp-p 50mVp-p 100mVp-p 150mVp-p 50mVp-p 200mVp-p 200mVp-p 200mVp-p
VOLTAGE TOLERANCE ±5.0% -5.0-+10% ±3.0% ±5.0% -5.0-+5% ±3.0% ±5.0% -5.0-+15% ±3.0% ±5.0% ±5.0% -5.0-+10%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±3.0% ±5.0% ±5.0% ±3.0% ±5.0% ±5.0% ±3.0% ±5.0% ±5.0% ±5.0%
SETUP, RISE, HOLD UP TIME 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 135~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00% 80.00% 80.50% 85.00%
AC CURRENT 0.8A / 100VAC 0.4A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 110 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by zener diode(5V only), output short
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (-20 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25B58F-R1B ), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC , I/P-FG:2121VDC
ISOLATION RESISTANCE I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 3, 1KV/L-N
Surge susceptibility BS EN/EN61000-4-5 Level 2, 3V
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 1KV
Voltage dips , interruption BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
Others MTBF 620K hrs min. MIL-HDBK-217F (25)
DIMENSION 107.5*67*36mm (L*W*H)

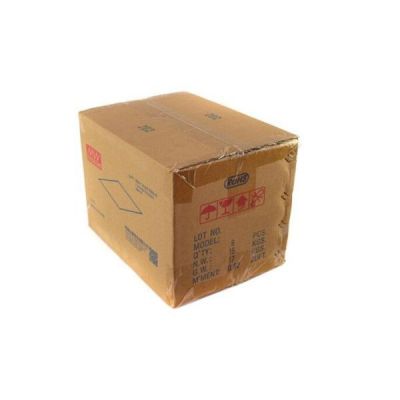

PACKING 0.3kg; 54pcs / 20kg / CARTON

Meanwell GP25B Series Features

l  Universal AC input/Full range

l  2 pole AC inlet IEC320-C8, Class I power unit

l  No load power consumption < 0.3W

l  Energy efficiency level VI

l  Comply with EISA 2007/DoE

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  -20 ~+70℃ working temperature

l  LED indicator for power on

l  Dual output available (optional)

l  ±16V/+48V also available for video system (optional, order NO. : GP25B58F-R1B)

l  3 years warranty

Meanwell GP25B Price and Specs 25W AC-DC Triple Output Industrial Adaptor plastic case level VI Class I YCICT

Meanwell GP25B Series Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

Meanwell GP25B Price and Datasheet 25W AC-DC Triple Output Industrial Adaptor plastic case level VI Class I YCICT

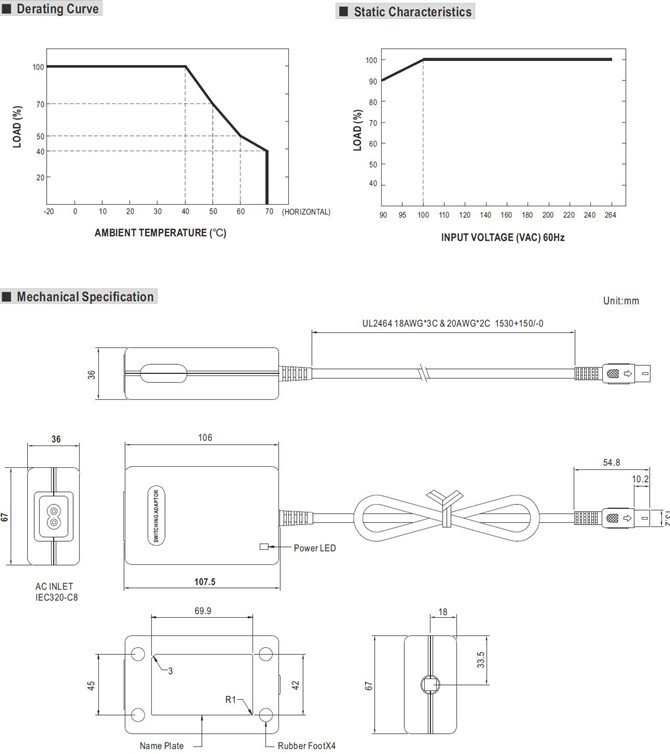

Meanwell GP25B Series Mechanical Diagram

Meanwell GP25B Price and Specs 25W AC-DC Triple Output Industrial Adaptor plastic case level VI ClassⅡpower YCICT
