GP25A13D-R1B
7.25
GP25A13D-R1B

GP25A13D-R1B

$7.25

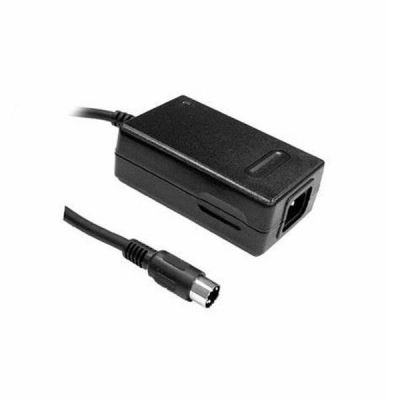

Meanwell 25W AC-DC Triple Output Industrial Adaptor with 5V12V-12V2.5A1A0.3A0.5-2.5A0.2-1A0.1-0.3A

- +
Availability:In stock
SKU Meanwell GP25A13D-R1B
Brand Meanwell
Details

Meanwell GP25A13D is a 25W AC-DC Industrial Adaptor with 5V12V-12V2.5A1A0.3A0.5-2.5A0.2-1A0.1-0.3A. The model outstands triple-output and desktop type. It complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). At the same time, GP25A13D adopts Class I design and utilizes standard inlet IEC320-C14, it is designed with FG and uses 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. What’s more, Meanwell GP25A13D operates from 90~ 264VAC and supplied with output voltage sets +5V/+12V/-12V. In addition, its supreme advantages includes less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. The item also confirms with the international safety certification such as CB, TUV, UL, CE and FCC. Thanks to its high safety, high reliability and high quality, Meanwell GP25A13D serves as a high performance power supply solution for various types of consumer electronic devices

Meanwell GP25A13D Price and Specs 25W AC-DC Triple Output Industrial Adaptor plastic case level VI Class I YCICT

Meanwell GP25A13D-R1B Encoding

GP Series Name
25 Rated Wattage
A IEC320 C14 3pin AC input
13D Output Voltage
R1B DC plug type R1B: Plug for standard model power DIN 5 pin
Other Options available by customer requested

Meanwell GP25A13D-R1B Specifications

ORDER NO. GP25A13D-R1B
OUTPUT SAFETY MODEL NO. GP25A13D
DC VOLTAGE 5V 12V -12V
RATED CURRENT 2.5A 1A 0.3A
CURRENT RANGE 0.5-2.5A 0.2-1A 0.1-0.3A
RATED POWER 28W
RIPPLE & NOISE (max.) 60mVp-p 120mVp-p 50mVp-p
VOLTAGE TOLERANCE ±5.0% -5.0-+5% ±3.0%
LINE REGULATION ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±3.0%
SETUP, RISE, HOLD UP TIME 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 135~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT 0.8A / 100VAC 0.4A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 110 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by zener diode(5V only), output short
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (-20 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25A58F-R1B ), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC , I/P-FG:2121VDC
ISOLATION RESISTANCE I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 620K hrs min. MIL-HDBK-217F (25)
DIMENSION 107.5*67*36mm (L*W*H)
PACKING 0.3kg; 54pcs / 20kg / CARTON

Meanwell GP25A13D-R1B Features

l  3 years warranty

l  Universal AC input/Full range

l  No load power consumption < 0.3W

l  Energy efficiency level VI

l  Comply with EISA 2007/DoE

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  -20 ~ +70℃ working temperature

l  LED indicator for power on

l  Dual output available (optional)

l  ±16V /+48V also available for video system

l  3 pole AC inlet lEC320-C14, Class I power unit

Meanwell GP25A13D Price and Specs 25W AC-DC Triple Output Industrial Adaptor plastic case level VI YCICT

Meanwell GP25A13D-R1B Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

Meanwell GP25A13D Price and Specs 25W AC-DC Triple Output Industrial Adaptor plastic case level VI Class I YCICT

Meanwell GP25A13D-R1B Mechanical Diagram

Meanwell GP25A13D Price and Datasheet 25W AC-DC Triple Output Industrial Adaptor plastic case level VI Class I YCICT
