Meanwell 16.8~30W Power Adaptor with Charging Function and 28.6V1.04A0-1.04A30W150mVp-p34.2-39.6V27.1-28.8V±0.5%

- +
Availability:In stock
SKU Meanwell GC30B-6P1J
Brand Meanwell
Details

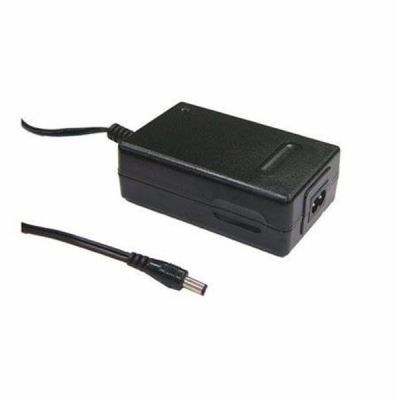

Meanwell GC30B-6P1J Price and Specs 16.8~30W Power Adaptor with Charging Function Class 2 plastic case CC CV YCICT

Meanwell GC30B-6P1J Specifications

Model GC30B-6P1J
OUTPUT SAFETY MODEL NO GC30B-6
DC VOLTAGE SET AT 28.6V
RATED CURRENT 1.04A
CURRENT RANGE 0-1.04A
RATED POWER 30W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 34.2-39.6V
CHARGING VOLTAGE RANGE 27.1-28.8V
LINE REGULATION ±0.5%
LED INDICATOR Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME 200ms, 50ms, 16ms at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT (Typ.) 0.7A /100VAC; 0.35A/230VAC
INRUSH CURRENT (max.) 40A/230VAC
LEAKAGE CURRENT(max.) 0.25mA /240VAC
PROTECTION OVERLOAD 90 ~ 110% Constant current mode and over 300% pulsing mode
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 135% rated output voltage
Protection type : Clamp by zener diode
OVER TEMPERATURE IC1_Tj > 130
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP 0 ~ +50 (Refer to output load derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% / (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL62368-1, CSA22.2, BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020
Others DIMENSION 108*67*36mm (L*W*H)
  PACKING 309g; 54pcs / 19kg / CARTON
CONNECTOR PLUG Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested

Meanwell GC30B-6P1J Features

l  High reliability

l  2 years warranty

l  2 pole AC Inlet IEC320-C8

l  Fully enclosed plastic case

l  Suitable for continue load

l  Universal AC input/Full range

l  Class II power (without earth pin)

l  No load power consumption <1.0W

l  For high surge current equipment

l  2 colors LED indicate for charging status

l  Constant current and voltage (CC, CV mode)

l  Approvals: UL/CUL/TUV/EACI CB/FCC1 CE/UKCA

l  Protections: Short circuit/Overload/Over voltage/Over temp

l  Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)

Meanwell GC30B-6P1J Price and Datasheet 16.8~30W Power Adaptor with Charging Function Class 2 plastic case CC CV YCICT
