FDL-65-1550
22.36
Details

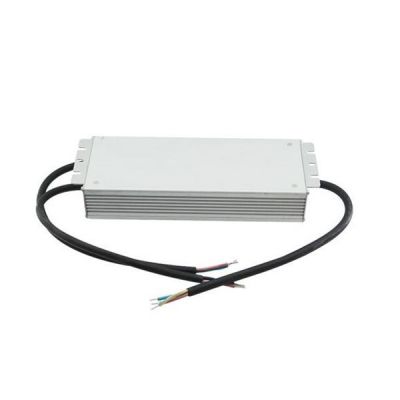

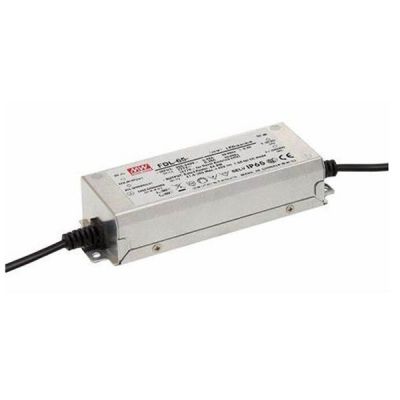

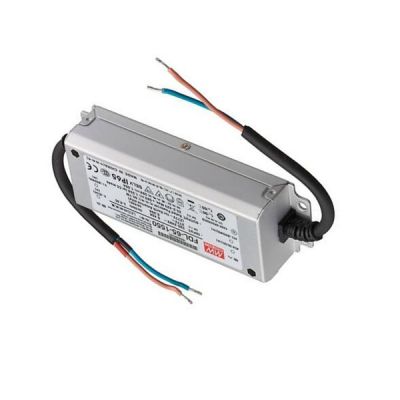

Meanwell FDL-65-1550 is a 65W LED AC/DC LED power supply with 1550mA65.1W25.2-42V50V0.77-1.55A±5.0%500ms/230VAC. The product highlights the constant current mode output aimed at but not limited to LED flood lighting applications. Meanwhile, it is able to operate from 180 ~ 295VAC and work perfectly for the voltage up to 42V (1550mA model). As the efficiency reaches high up to 90% with the fanless design, Meanwell FDL-65-1550 can work for -40℃~ +90℃ case temperature under free air convection. Additionally, the metal housing design and IP65ingress protection level combined allow it to meet with both indoor and outdoor applications. Moreover, the model is provided with output current adjustable function. Due to its long lifetime, high efficiency and excellent quality, Meanwell FDL-65-1550 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell FDL-65-1550 Encoding
| FDL | Series Name |
| 65 | Rated Wattage |
| 1550 | Rated Output Current (1550/1800mA) |
Meanwell FDL-65-1550 Specifications
| Model | FDL-65-1550 | |
| RATED CURRENT | 1550mA | |
| RATED POWER | 65.1W | |
| CONSTANT CURRENT REGION | 25.2-42V | |
| OPEN CIRCUIT VOLTAGE(max.) | 50V | |
| CURRENT ADJ. RANGE | 0.77-1.55A | |
| CURRENT ADJ. RANGE | ±5.0% | |
| SETUP, RISE TIME | 500ms/230VAC | |
| Input | VOLTAGE RANGE | 180 ~ 295VAC 254 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.95/230VAC, PF>=0.90/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 0.48A / 230VAC 0.39A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 11A(twidth=35μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 26 units (circuit breaker of type B) / 26 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | <0.5W | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |
| OVER VOLTAGE | 46 ~ 56V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | LVD BS EN/EN61347-1,BS EN/EN61347-2-13 Independent, GB19510.1,GB19510.14,EAC TP TC 004, IP65 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (load>=60%) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 4KV,Line-Line:2KV),EAC TP TC 020 |
|
| Others | MTBF | 5409.5K hrs min. Telcordia SR-332 (Bellcore) 596.6Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 151*53*31.5mm (L*W*H) | |
| PACKING | 0.441Kg; 24pcs / 11.6Kg / 0.73CUFT | |
Meanwell FDL-65-1550 Features
l 3 years warranty
l Constant Current mode output
l Metal housing design
l Built-in active PFC function
l No load power consumption <0.5 W
l IP65 rating for indoor or outdoor installations
l Output current adjustable via potentiometer
Meanwell FDL-65-1550 Applications
l LED flood lighting
l L ED decorative lighting
l LED architectural lighting
Meanwell FDL-65-1550 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
