EPP-400-24
66.35

EPP-400-24

$66.35

Meanwell 400W Single Output with PFC Function 24V16.7A10.5A400.8W252W200mVp-p22.8-25.2V±2.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell EPP-400-24
Brand Meanwell
Details

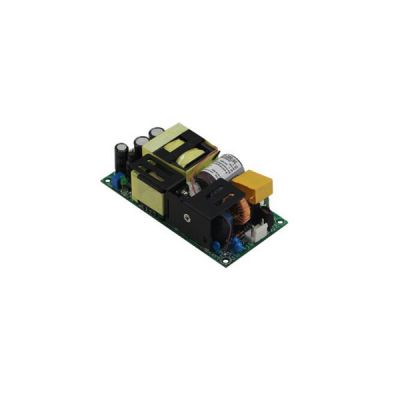

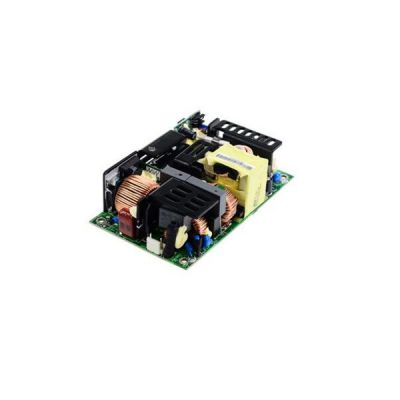

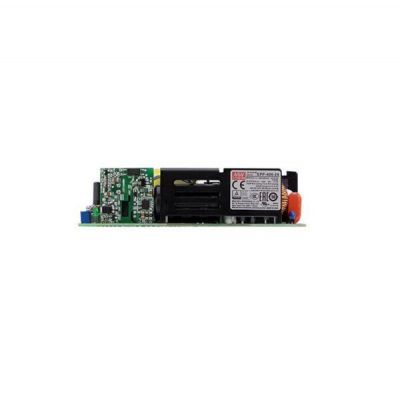

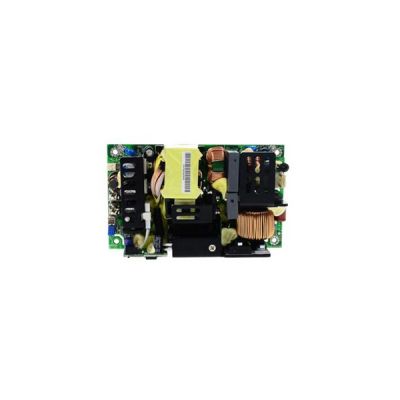

Meanwell EPP-400-24 is a 400W highly reliable green PCB type power supply with 24V16.7A10.5A400.8W252W200mVp-p22.8-25.2V. It has PFC Function and high power density on the 5" by 3" footprint, and also accepts 80~264V AC input and various output voltages between 12V and 48V. With the high working efficiency up to 94% and the extremely low no load power consumption <0. 5W, EPP-400-24 can be applied for both Class I (with FG) and ClassⅡ (no FG) system design. In addition, the product provides complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Moreover, it is complied with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004. As a result of its high efficiency, high reliability and long longevity. Meanwell EPP-400-24 is a high price-to-performance power supply solution for various industrial applications.

Meanwell EPP-400-24 Encoding

Meanwell EPP-400-24 Encoding

EPP Series Name
400 Output Wattage
24 Output Voltage

Meanwell EPP-400-24 Specifications

Model EPP-400-24
OUTPUT DC VOLTAGE 24V
CURRENT   25CFM 16.7A
Convection 10.5A
RATED POWER 25CFM 400.8W
Convection 252W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE 22.8-25.2V
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 93.00%
AC CURRENT (Typ.) 4.2A/115VAC 2.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 40A/115VAC 80A/230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVERL OAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 26.4-31.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION 5V STANDBY 5VSB : 5V@0.6A without fan, 1A with fan 25CFM ; tolerance ±2%, ripple : 120mVp-p(max.)
FAN SUPPLY 12V@0.5A for driving a fan ; tolerance -15% ~+10% at main output 35% rated current (25CFM)
POWER GOOD / POWER FAIL 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal
goes low at least 1ms before Vo below 90% of rated value
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
OPERATING ALTITUDE 5000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,CCC GB17625.1, GB/T9254, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, heavy industry level,
criteria A, EAC TP TC 020
OTHERS MTBF 194.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 127*76.2*35mm (L*W*H)
PACKING 0.39Kg; 36pcs/15Kg/0.96CUFT

Meanwell EPP-400-24 Features

l  3 years warranty

l  5"x3" miniature size

l  Output 18V available

l  High efficiency up to 94%

l  Universal AC input/ Full range

l  Built-in active PFC function

l  Built-in 12V/0.5A FAN supply

l  Built-in remote sense function

l  LED indicator for power on

l  Operating altitude up to 5000 meters

l  Standby 5V@1A with fan, 0.6A without fan

l  EMI Class B for ClassⅠ& Class A for ClassⅡconfiguration

l  No load power consumption<0.5W by PS_ ON control

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection for 250W and 400W with25CFM forced air

Meanwell EPP-400-24 Features

Meanwell EPP-400-24 Applications

l  Mechanical and electrical equipment

l  Industrial control system

l  Industrial automation machinery

l  Electronic instruments, equipment, or apparatus

Meanwell EPP-400 Series Applications

Meanwell EPP-400-24 Mechanical Diagram

Meanwell EPP-400-24 Mechanical DiagramMeanwell EPP-400 Series Mechanical Diagram
