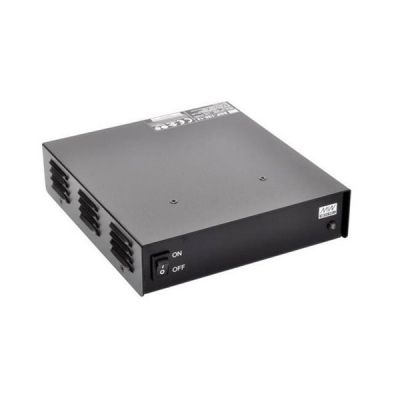

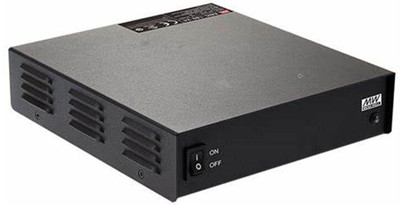

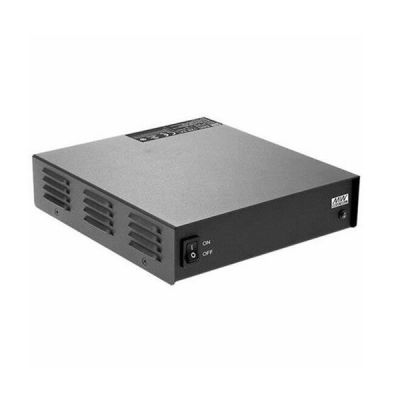

Meanwell 360W Level Ⅵ Desktop Type Power Supply with 13.8V26A150mVp-p11.5-15V±1.0%±0.5%±2.0%

- +
Availability:In stock
SKU Meanwell ENP-360-12
Brand Meanwell
Details

Meanwell ENP-360-12 is 360W desktop type power supply with 13.8V26A150mVp-p11.5-15V. The product works perfectly for communication related applications. With the standard 7" width size in the land mobile radio field, it provides the most frequently used voltage in the communication field. At the same time, ENP-360-12 could operate for the ambient temperature range -30℃~+70℃ under free air convection. Compared with ESP and ESC, it has significant improvement: wide input range (88~132VAC/ 176~264VAC→90~264VAC), new active power factor correction function (Active PFC), extended warranty period (2 years→ 3 years) and complete safety certification (UL/CUL/CB/CE/FCC). In addition, ENP-360-12 complies with the latest global energy consumption standards EISA 2007/DoE Level VI, NRCan, EU ErP and CoC Fifth Edition. ENP-360 adds programmable (Programmable) function controlled specially by MCU in the design, so that users can adjust the appropriate charging methods and parameters for different battery specifications through personal computers and intelligent programmer SBP-001 and special software. Due to its longevity, good quality, and high reliability, Meanwell ENP-360-12 is very suitable for radio system backup solutions, land radio systems, monitoring systems electric and bicycle chargers and other applications.Meanwell ENP-360-12 Price and Specs Charger External Battery Charger Desktop Type Power Supply AC/DC 360W YCICT

Meanwell ENP-360-12 Specifications

Model ENP-360-12
OUTPUT DC VOLTAGE 13.8V
RATED CURRENT 26A
CURRENT RATED 0-26A
PEAK 32.6A
WATTAGE RATED 359W
PEAK 450W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 11.5-15V
VOLTAGE TOL ERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 1000ms, 100ms at full load
HOLD UP TIME (Typ.) 20ms at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.) 91.00%
AC CURRENT 3.8A/115VAC 1.9A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A at 230VAC
NO LOAD POWER CONSUMPTION <0.5W
LEAKAGE CURRENT <3.5mA / 240VAC
PROTECTION SHORT CIRCUIT Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVERLOAD Normally works within 110 ~ 125% rated output power for more than 3 seconds and switches to constant current limiting, with auto-recovery after the peak load condition is removed
Constant current limiting, if >125% rated power, with auto-recovery after the overload condition is removed
OVER VOLTAGE 15.5-18.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down O/P voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC62368-1, UL62368-1, EAC TP TC 004, J62368-1(2020)(Only for 12V,24V) approved; Meet BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035
Others MTBF 1199.8K hrs min. Telcordia SR-332 (Bellcore) ; 147.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 192*178*45.5mm (L*W*H)
PACKING 1.5Kg; 10pcs/16Kg /1.38CUFT

Meanwell ENP-360-12 Features

l  3 years warranty

l  125% peak load capability

l  Universal AC input/Full range

l  Built-in active PFC function

l  Energy efficiency Level VI

l  No load power consumption <0.5W

l  Comply with EISA 2007/DoE, NRCan and EU ErP

l  Fanless design, cooling by free air convection

l  Protection: Short circuit/Overload/Over voltage/Over temperature

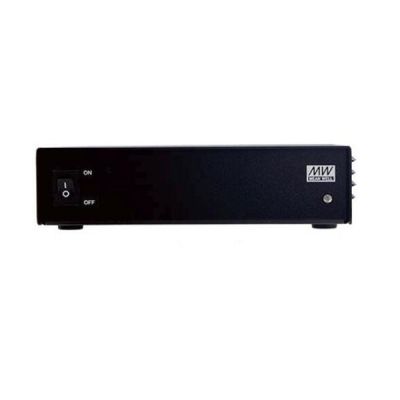

Meanwell ENP-360-12 Price and Specs 360W Charger External Battery Charger Desktop Type Power Supply AC/DC YCICT

Meanwell ENP-360-12 Applications

l  Land mobile radio system

l  Surveillance system

l  TV antenna facility

Meanwell ENP-360-12 Mechanical Diagram

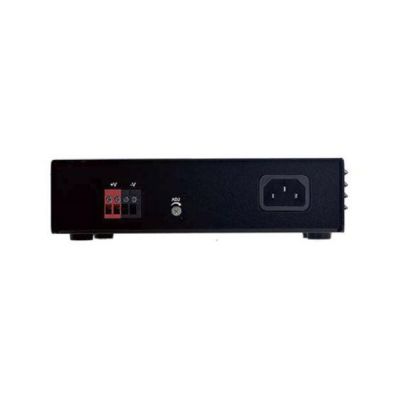

Meanwell ENP-360-12 Price and Datasheet 360W Charger External Battery Charger Desktop Type Power Supply AC/DC YCICT

Meanwell ENP-360-12 Price and Datasheet 360W Charger External Battery Charger Desktop Type Power Supply with PFC YCICT
