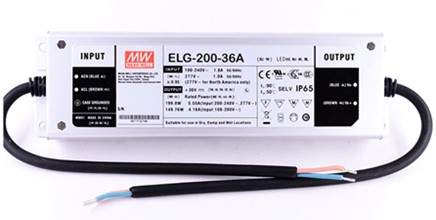

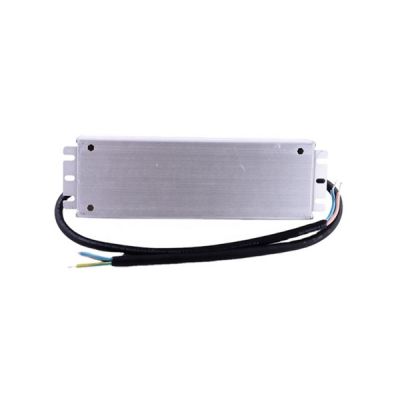

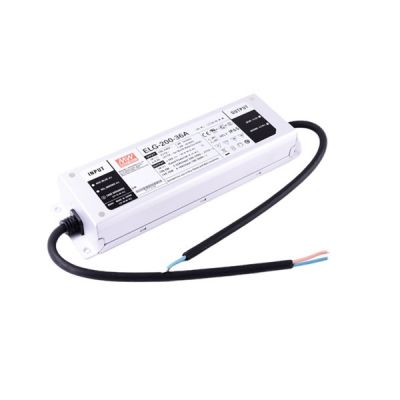

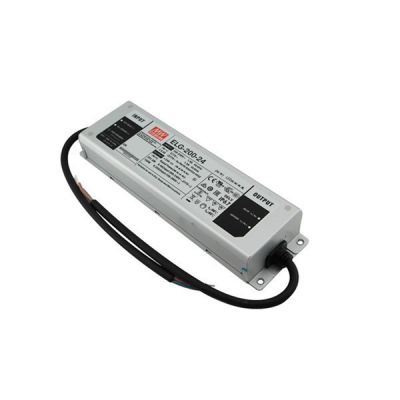

Meanwell ELG-200-36 is a 200W AC/DC LED driver with 36V18-36V5.55A199.8W149.76W250 mVp-p33.5-38.5V2.78-5.55A. It features with the dual mode constant voltage and constant current output, and operates from 100 ~ 305VAC. The item is equipped with the rated voltage 36V. Due to the high efficiency reaching up to 93% and the fanless design, ELG-200-36 could operate for -40 ℃~ +90 ℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allows the unit to fit both indoor and outdoor applications. Additionally, ELG-200-36 is provided with various function options, such as dimming methodologies. In view of its long life, high efficiency and excellent quality, Meanwell ELG-200-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system

Meanwell ELG-200-36 Meanwell ELG-200 price and specs ac dc led driver ycict

Meanwell ELG-200-36 Encoding

ELG Series Name
200 Rated Wattage
36 Rated Output Voltage (12/24/36/42/48V/54V)
A Function Mode Option
***( Input Wiring Type) Blank: 2-wire input for standard model)
3Y: 3-wire input for standard model)
Type IP Level Function Note
Blank IP67 IO and VO fixed In stock
A IP65 lo and Vo adjustable through built-in potentiometer. In stock
IP67 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance)
In stock
DA IP67 DALI control technology In stock
Dx IP67 Built-in Smart timer dimming function by user request By request
D2 IP67 Built-in Smart timer dimming and programmable function In stock

Meanwell ELG-200-36 Specifications

Model ELG-200-36
Output DC VOLTAGE 36V
CONSTANT CURRENT REGION 18-36V
RATED CURRENT 5.55A
RATED POWER 200VAC ~ 305VAC
199.8W
100VAC ~ 180VAC
149.76W
RIPPLE & NOISE (max.)  250 mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
33.5-38.5V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
2.78-5.55A
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.) 10ms/ 230VAC 10ms/ 115VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC atfull load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  92.00%
AC CURRENT 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
INRUSH CURRENT (Typ. ) COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D-Type
Standby power consumption <0.5W for B / AB / DA-Type
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down output voltage, re-power on to recover
OVER VOLTAGE 42-49V
Shut down output voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
MAX. CASE TEMP. Tcase=+90
STORAGE TEMP., HUMIDITY -40 ~ +90, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent,
BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B
only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ;BS EN/ EN61000-3-3;GB17625.1,GB17743;
EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV,
Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547
Others MTBF 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 244*71*37.5mm (L*W*H)
PACKING 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT

Meanwell ELG-200-36 Features

l  5 years warranty

l  Built-in active PFC function

l  Typical lifetime>50000 hours

l  Constant Voltage + Constant Current mode output

l  Metal housing design with functional Ground

l  No load/Standby power consumption<0.5W

l  IP67/IP65 rating for indoor or outdoor installations

l  F unction options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI

Meanwell ELG-200-36 Features Meanwell ELG-200-36 price and specs ac dc led driver ycict

Meanwell ELG-200-36 Applications

l  LED bay lighting

l  LED floodlighting

l  LED street lighting

l  LED architectural lighting

l  Type HL" for use in Class I, Division 2hazardous (Classified) location

Meanwell ELG-200-36 Mechanical Diagram

Meanwell ELG-200-36 Mechanical Diagram Meanwell ELG-200-36 price and spes ac dc led driver elg-200 ycict

Meanwell ELG-200-36 Mechanical Diagram Meanwell ELG-200-36 price and spes ac dc led driver elg-200 series ycict
