ELG-100-36
25.24

ELG-100-36

$25.24

Meanwell 70~100W Constant Voltage + Constant Current LED Driver with 36V18-36V2.66A95.76W70W250 mVp-p32.4-39.6V1.33-2.66A±2.5%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell ELG-100-36
Brand Meanwell
Details

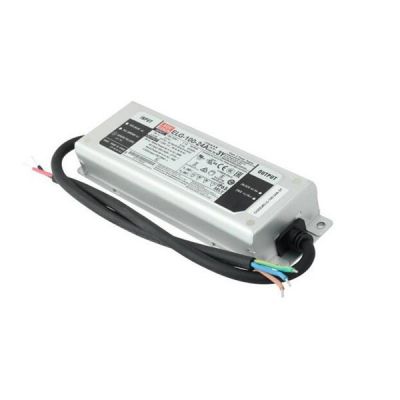

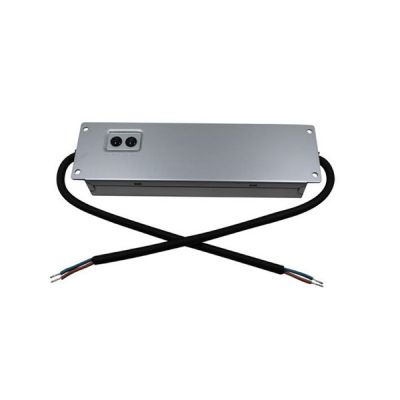

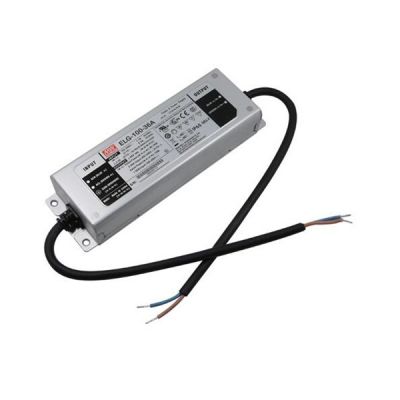

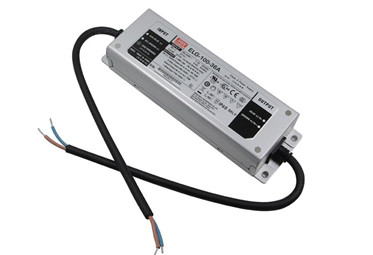

Meanwell ELG-100-36 is a 100W AC/DC LED driver with 36V18-36V2.66A95.76W70W250 mVp-p32.4-39.6V1.33-2.66A. The item highlights the dual mode constant voltage and constant current output, and operates from 100~ 360VAC with the rated voltage 36V. Due to the high efficiency reaching up to 91% and the fanless design, ELG-100-36 could work for -40℃~ +90℃ case temperature under free air convection. Moreover, the metal housing design and IP67/IP65 ingress protection level permits to meet both indoor and outdoor applications. Apart from them, the product is supplied with various function options such as dimming methodologies. In light of its long life, high efficiency and excellent quality, Meanwell ELG-100-36 serves as an ideally suitable solution for the optimal design flexibility for LED lighting system

ELG-100-36 Meanwell ELG-100-36 price and specs 100W AC/DC LED driver ycict

Meanwell ELG-100-36 Encoding

ELG Series Name
100 Rated Wattage
36 Rated Output Voltage (24/36/42/48V/54V)
A Function Mode Option
***( Input Wiring Type) Blank: 2-wire input for standard model)
3Y: 3-wire input for standard model)
Type IP Level Function Note
Blank IP67 IO and VO fixed In stock
A IP65 lo and Vo adjustable through built-in potentiometer. In stock
IP67 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance)
In stock
DA IP67 DALI control technology In stock
Dx IP67 Built-in Smart timer dimming function by user request By request
D2 IP67 Built-in Smart timer dimming and programmable function In stock

Meanwell ELG-100-36 Specifications

Model ELG-100-36
Output DC VOLTAGE 36V
CONSTANT CURRENT REGION 18-36V
RATED CURRENT 2.66A
RATED POWER 200VAC ~ 305VAC
95.76W
100VAC ~ 180VAC
70W
RIPPLE & NOISE (max.)  250 mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
32.4-39.6V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
1.33-2.66A
VOLTAGE TOLERANCE ±2.5%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.) 15ms/115VAC 10ms/230VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  89.00%
AC CURRENT 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT (Typ. ) COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION No load power consumption <0.5W for Blank / A / Dx / D2-Type
Standby power consumption <0.5W for B / AB / DA-Type
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down output voltage, re-power on to recover
OVER VOLTAGE 41-48V
Shut down output voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B
only); GB19510.1, GB19510.14; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%); BS EN/EN61000-3-3;GB17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
Others MTBF 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25)
DIMENSION 199*63*35.5mm (L*W*H)
PACKING 0.85kg; 16pcs/14.2kg/0.72CUFT

Meanwell ELG-100-36 Features

l  Class 2 power unit

l  5 years warranty

l  Built-in active PFC function

l  Typical lifetime> 50000 hours

l  Metal housing design with functional Ground

l  No load/Standby power consumption <0.5W

l  IP67/IP65 rating for indoor or outdoor installations

l  Constant Voltage + Constant Current mode output

l  Function options: output adjustable via potentiometer; 3 in1dimming (dim-to-off); Smart timer dimming; DALI

Meanwell ELG-100-36 Features Meanwell ELG-100-36 price and specs ac dc led driver ycict

Meanwell ELG-100-36 Applications

l  LED street lighting

l  LED bay lighting

l  LED floodlighting

l  LED architectural lighting

l  Type HL" for use in Class I, Division 2hazardous (Classified) location

Meanwell ELG-100-36 Mechanical Diagram

Meanwell ELG-100-36 Mechanical Diagram Meanwell ELG-100-36 price and specs led driver ycict

Meanwell ELG-100-36 Mechanical Diagram Meanwell ELG-100-36 price and specs 100w ac dc led driver ycict good price
