DRC-180B
99.47
Details

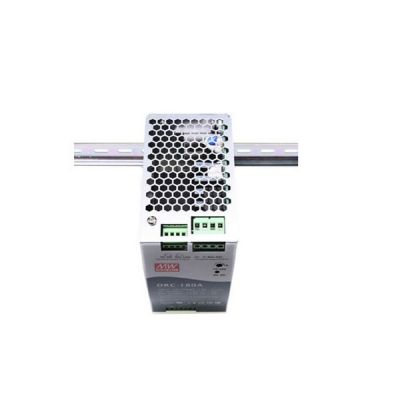

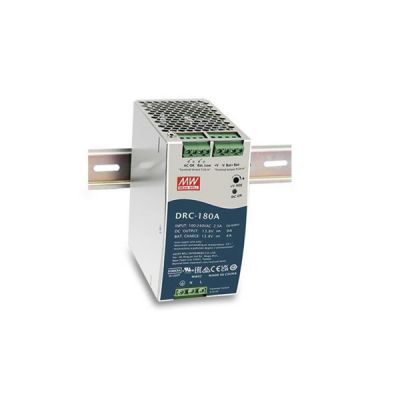

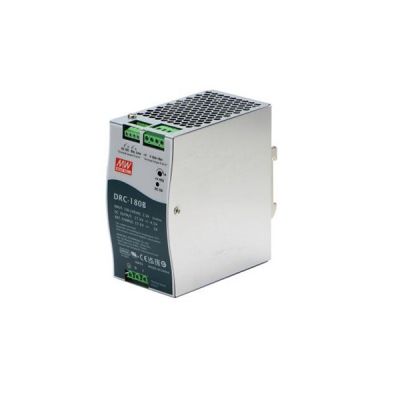

Meanwell DRC-180B is 180W AC/DC Single Output DIN rail type security power supply Battery Charger with CH1CH227.6V27.6V4.5A2A (Battery charger)0-6.5A179.4W240mVp-pCH1:24-29V (UPS Function). The item could be mounted on DIN rail TS-35/7.5 or 15 with the width only 63mm, well suited for the installation in limited spacing. Besides the primary output, there is a charger output with smaller rated current, enabling the backup power supply application the security access systems require. Furthermore, DRC-180B accepts the universal input between 90V AC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. As the efficiency goes up to 90%, the product is able to work under -20℃ through 70℃ with air convection cooling. In addition to the key protections such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is equipped as well via relay contact output to facilitate the system design. Thanks to its high efficiency, excellent reliability and long lifespan. Meanwell DRC-180B serves as an ideal power supply solution for industrial applications.
Meanwell DRC-180B Encoding
| DRC | Series Name |
| 180 | Output wattage |
| B | Output Voltage ( A: 13.8V , B: 27.6V) |
Meanwell DRC-180B Specifications
| Model | DRC-180B | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 27.6V | 27.6V | |
| RATED CURRENT | 4.5A | 2A (Battery charger) | |
| CURRENT RANGE | 0-6.5A | ---- | |
| RATED POWER | 179.4W | ||
| RIPPLE & NOISE (max.) | 240mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:24-29V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | |
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 20ms/230VAC 20ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF≧0.95/230VAC PF≧0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 90.00% | ||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||
| LEAKAGE CURRENT | <2mA / 240VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | CH1:30.5 ~ 37.7V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||
| BATTERY CUT OFF | 20±1V | ||
| FUNCTION | AC OK | Relay contact output, Closed : AC OK ; Open : AC Fail ; Max. rating : 30V / 1A | |
| BATTERY LOW | Relay contact output, Open : Battery OK ; Closed : Battery Low ; Max. rating : 30V / 1A | ||
| Battery low voltage : < 22V | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||
| OPERATING ALTITUDE | 5000 meters | ||
| OVER VOLTAGE CATEGORY | Ⅱ; According to Dekra BS EN/EN62368-1; altitude up to 5000 meters | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, Dekra BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMS IMMUNITY | BS EN/EN55024 | ||
| OTHERS | MTBF | 1536.3K hrs min. Telcordia SR-332 (Bellcore); 245.6K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 63*125.2*115mm (W*H*D) | ||
| PACKING | 0.71Kg; 12pcs/10.5Kg/1.02CUFT | ||
Meanwell DRC-180B Features
l 3 years warranty
l Universal AC input/ Full range
l Built-in active PFC function
l Cooling by free air convection
l LED indication for Power on
l DC output voltage adjustable (+20%)
l Operating altitude up to 5000 meters
l -20℃ ~ +70 ℃ wide operating temperature
l Can be installed on DIN rail TS-35/7.5 or 15
l Alarm signal for AC OK and Battery Low (Via Relay)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Battery low protection/ Battery reverse polarity protection by fuse
Meanwell DRC-180B Applications
l Security system
l Alarm system
l UPS system
l Access systems
l Central monitoring system
l Emergency lighting system
Meanwell DRC-180B Mechanical Diagram
