DDR-15L-12
14.14

DDR-15L-12

$14.14

Meanwell 15W DIN Rail Type DC-DC Converter with 12V1.25A0-1.25A15W60mVp-p9-13.2V±2.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell DDR-15L-12
Brand Meanwell
Details

Meanwell DDR-15L-12 is a 15W DIN Rail type DC-DC converter with 12V1.25A0-1.25A15W60mVp-p9-13.2V. The model features easy installation, ultra slim width (17.5mm), and 4:1 ultra-wide input voltage. At the same time, DDR-15L-12 could work under -40~ +85℃ wide operating temperature, with 4KVdc I/O isolation, adjustable output voltage (±10%), and full protective functions ... etc. Furthermore, the product is used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, which increases system insulation level and voltage drop compensation along cable ... etc.

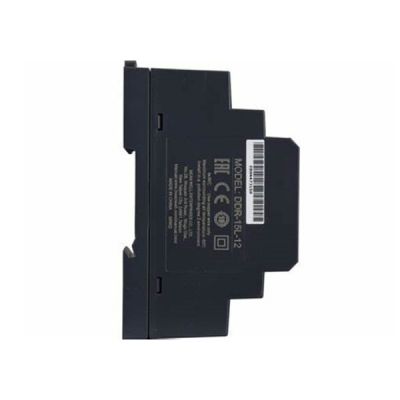

Meanwell DDR-15L-12 price and specs 15W DIN Rail Type DC-DC Converter 12V 1.25A 0-1.25A 15W 50mVp-p Width 17.5mm YCICT

Meanwell DDR-15L-12 Encoding

DDR Series Name
15 Rated Wattage
L Input Voltage ( G: 9-36Vdc, L: 18-75Vdc)
12 Output Voltage ( 3.3/5/12/15/24Vdc)

Meanwell DDR-15L-12 Specifications

MODEL DDR-15L-12
OUTPUT DC VOLTAGE 12V
RATED CURRENT 1.25A
CURRENT RANGE 0-1.25A
RATED POWER 15W
RIPPLE & NOISE (max.) 60mVp-p
VOLTAGE ADJ. RANGE 9-13.2V
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 120ms, 85ms at full load
HOLD UP TIME (Typ.) L-type: 16ms at 48Vdc input
EXTERNAL CAPACITANCE .LOAD (Max.) 1200μF
INPUT VOLTAGE RANGE 18 ~ 75Vdc
EFFICIENCY (Typ.) 85.00%
DC CURRENT (Typ.) 0.4A /48Vdc
INRUSH CURRENT (Typ.) 15A /48Vdc
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V
Protection type : Shut down o/p voltage, re-power on to recover
REVERSE POLARITY By internal MOSFET, no damage, recovers automatically after fault condition removed
UNDER VOLTAGE LOCKOUT Power ON>=18V , OFF<=17V
ENVIRONMENT WORKING TEMP. -40 ~ +85(Refer to "Derating Curve")
WORKING HUMIDITY 5~95% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+85, 5~95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 2000 meters
SAFETY&EMC SAFETY STANDARDS IEC 62368-1 (LVD) ,AS/NZS 62368.1 approved; Design refer to UL508
WITHSTAND VOLTAGE I/P-O/P:4KVdc
ISOLATION RESISTANCE I/P-O/P>100M Ohms / 500Vdc / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)
OTHERS MTBF 907K hrs min. MIL-HDBK-217F (25)
DIMENSION 17.5*90*54.5mm (W*H*D)
PACKING 68g; 160pcs/12Kg/1.19CUFT

Meanwell DDR-15L-12 Features

l  Width only 17.5mm (1SU)

l  3 years warranty

l  4:1 ultra-wide input range

l  -40~ +85℃ wide working temperature

l  No minimum load required

l  DC output adjustable (±10%)

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or15

l  Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection

l  4KVdc I/O isolation (Reinforced isolation)

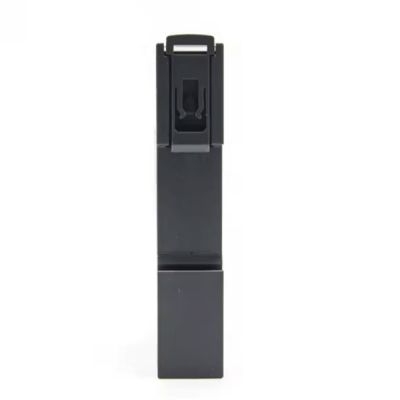

Meanwell DDR-15L-12 price and specs 15W DIN Rail Type DC-DC Converter 12V 1.25A 0-1.25A 15W 50mVp-p 17.5mm YCICT

Meanwell DDR-15L-12 Mechanical Diagram

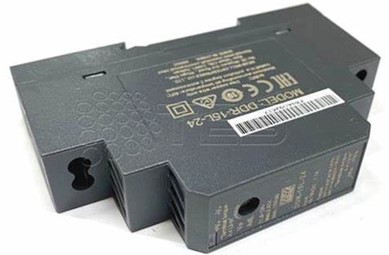

Meanwell DDR-15L-12 price and specs 15W DIN Rail Type DC-DC Converter 12V 1.25A 0-1.25A 15W 60mVp-p 17.5mm 1SU YCICT
