CloudEngine 8865-SAN-4C
2096.48
Details
Huawei CloudEngine 8865-SAN-4C is a next-generation Ethernet switches designed for DCs. The product features high performance, high density, low latency, and flexible cards. It is built on an advanced hardware structure and provide high-density 400GE, 100GE, and 25GE ports. Running over Huawei YunShan software platform, they support abundant DC features. Additionally, they can work with CloudEngine 16800/8800/6800/5800 switches to build an elastic, virtual, and high-quality data center network (DCN), meeting networking requirements of DCs in the cloud computing era. CloudEngine 8865-4C series switches can function as core or aggregation switches on DCNs to help enterprises and carriers to build a DCN platform for the cloud computing era.
Furthermore, switches in an M-LAG system can be upgraded independently. During the upgrade, other switches in the system take over traffic forwarding to ensure uninterrupted services. M-LAG supports dual-homing to Ethernet, VXLAN, and IP networks, allowing for flexible networking.
CloudEngine 8865-4C series switches can also be used as aggregation or core switches on campus networks, and provides high-speed forwarding at line-rate on all ports in both Layer2 and Layer3 modes.

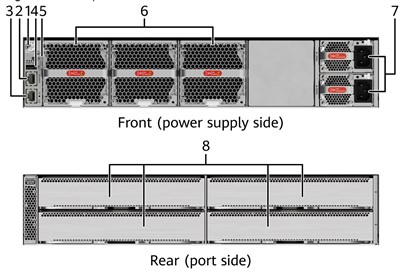

| 1, Ground screw | 2, Console port |
| 3, ETH management port (RJ45) | 4, USB port |
| 5, Equipment serial number (ESN) and MAC address | 6, Three Fan slots |
| 7, Two Power supply slot | 8, Extended card slots |

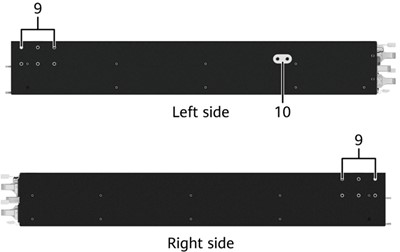

| 9, Port-side mounting holes for mounting brackets | 10, Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
Huawei CloudEngine 8865-SAN-4C Specifications
| Item | Details |
| Description | CE8865-SAN-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| Part Number | 02355SDP |
| Model | CE8865-SAN-4C |
| First supported version | V300R023C10 |
| Other part numbers | 02355SDQ (CE8865-SAN-4C Mainframe (With 4 Subcard Slots, 2*AC Power Module, 3*Fans, Port-side Intake)) |
| 02355SDR (CE8865-SAN-4C Mainframe (With 4 Subcard Slots, 2*AC Power Module, 3*Fans, Port-side Exhaust)) | |
| Short Name | CE8865-SAN |
| Dimensions with packaging (H x W x D) [mm (in.)] | 280 mm x 875 mm x 665 mm (11.02 in. x 34.45 in. x 26.18 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 88.1 mm x 442.0 mm x 600.0 mm (3.47 in. x 17.40 in. x 23.62 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 88.1 mm x 442.0 mm x 640.0 mm (3.47 in. x 17.40 in. x 25.20 in.) | |
| Weight without packaging [kg (lb)] | 12.76 kg (28.13 lb) (with two power module filler panels and three fan module filler panels but no power modules, fan modules, cards, and card filler panels) |
| 15.48 kg (34.13 lb) (with four card filler panels, two power module filler panels, and three fan module filler panels but no power modules, fan modules, and cards) | |
| Weight without packaging (full configuration) [kg (lb)] | 16.54 kg (36.46 lb) (with two power modules and three fan modules, but no cards and card filler panels) |
| 19.26 kg (42.46 lb) (with two power modules, three fan modules, and four card filler panels, but no cards) | |
| Weight with packaging [kg (lb)] | 21.3 kg (46.96 lb) (with two power module filler panels and three fan module filler panels but no power modules, fan modules, cards, and card filler panels) |
| 24.02 kg (52.96 lb) (with four card filler panels, two power module filler panels, and three fan module filler panels but no power modules, fan modules, and cards) | |
| Weight with packaging (full configuration) [kg (lb)] | 25.08 kg (55.29 lb) (with two power modules and three fan modules, but no cards and card filler panels) |
| 27.8 kg (61.29 lb) (with two power modules, three fan modules, and four card filler panels, but no cards) | |
| Chassis height [U] | 2 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. |
| This function is reserved. | |
| Power supply mode | AC pluggable |
| DC pluggable | |
| HVDC pluggable | |
| Console port | RJ45 |
| Downlink Service interface | For details, see the port description of each card. |
| Uplink Service interface | For details, see the port description of each card. |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Static power consumption [W] | Configured with four CE88-SAN-D16CQ-H cards: 569 W |
| Configured with four CE88-SAN-D26F-H cards: 276 W | |
| Static heat dissipation [BTU/hour] | Configured with four CE88-SAN-D16CQ-H cards: 1941.4 BTU/hour |
| Configured with four CE88-SAN-D26F-H cards: 941.7 BTU/hour | |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Types of fans | Pluggable |
| Number of fan modules | 3 |
| Redundant fans | The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction. |
| Availability | 0.999996462 |
| MTBF [year] | 48.4 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Port-side air intake: < 64.3 dB(A) |
| Port-side air exhaust: < 65.2 dB(A) | |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Port-side air intake: < 86.1 dB(A) |
| Port-side air exhaust: < 87.9 dB(A) | |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
Huawei CloudEngine 8865-SAN-4C Features
l CloudEngine 8865 series switches are integrated with mainstream cloud platforms (including commercial and open-source cloud platforms) and third-party controllers, enabling flexible service customization and automatic management.
l CloudEngine 8865 series switches support telemetry technology to collect device data in real time and send the collected data to iMaster NCE-FabricInsight — the DCN analysis component of Huawei iMaster NCE. Leveraging the intelligent fault identification algorithm, iMaster NCE-FabricInsight can analyze network data, accurately display the real-time network status, locate faults and identify their root causes in a timely and effective manner, and detect network problems that can affect user experience, precisely guaranteeing user experience.
l CloudEngine 8865 series switches support PFC deadlock prevention. They can identify service flows that may cause PFC deadlocks and change queue priorities of these flows to prevent PFC deadlocks.
l CloudEngine 8865 series switches support remote positioning. Users can turn on the remote positioning indicator through the network management system (NMS) or console to easily identify the switches they want to maintain in an equipment room full of devices.
Huawei CloudEngine 8865-SAN-4C Ordering Info
| CE8850-SAN | CE8850-SAN switch (32*100GE QSFP28,without fan and power modules) |
| CE8850-HAM | CE8850-HAM switch (32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)(CM) |
| CE8865-SAN-4C | CE8865-SAN-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| CE8865-4C | CE8865-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| CE8850-EI-F-B0A | CE8850-32CQ-EI Switch (32-Port 100GE QSFP28,2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Exhaust) |
| CE8850-EI-B-B0A | CE8850-32CQ-EI Switch (32-Port 100GE QSFP28, 2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Intake) |
| CE8850-32CQ-EI | CE8850-32CQ-EI Switch (32-Port 100GE QSFP28 Optical,2*FAN Box, Port-side Exhaust, Without Power Module) |
| CE8850-EI-F-B0B | CE8850-64CQ-EI Switch (64-Port 100GE QSFP28,2*AC Power Module,3*FAN Box, Port-side Exhaust) |
| CE8850-EI-B-B0B | CE8850-64CQ-EI Switch (64-Port 100GE QSFP28,2*AC Power Module,3*FAN Box, Port-side Intake) |
| CE8850-64CQ-EI | CE8850-64CQ-EI Switch (64-Port 100GE QSFP28, Without Fan and Power Module) |
| CE8861-4C-EI-F | CE8861-4C-EI Mainframe (With 4 Subcard Slots,2*FAN Box, Port-side Exhaust, Without Power Module) |
| CE8861-4C-EI-B | CE8861-4C-EI Mainframe (With 4 Subcard Slots,2*FAN Box, Port-side Intake, Without Power Module) |
| CE8861-4C-EI | CE8861-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box, Without Power Module) |
| CE88-D8CQ | 8 Port 100GE QSFP28 Interface Card |
| CE88-D16Q | 16 Port 40GE QSFP+ Interface Card |
| CE88-D24T2CQ | 24 Port 10GE Base-T and 2 Port 100GE QSFP28 Interface Card |
| CE88-D24S2CQ | 24 Port 25GE SFP28 and 2 Port 100GE QSFP28 Interface Card |
| CE88-D24S2CQ-U | 24-Port 25GE/16G FC (SFP28) and 2-Port 40GE/100GE (QSFP28) Interface Card |
| FAN-180A-F | Fan box (F, FAN panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| FAN-180A-B | Fan box (B, FAN panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| FAN-40HA-F | Fan box (HA, Front to Back, FAN panel side intake) Applicable CE8850-32CQ-EI |
| FAN-40HA-B | Fan box (HA, Back to Front, FAN panel side exhaust) Applicable CE8850-32CQ-EI |
| PAC-1K2WA-F | 1200W AC&240V DC Power Module (Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PAC-1K2WA-B | 1200W AC&240V DC Power Module (Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PHD-1K2WA-F | 1200W HVDC Power Module (Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PHD-1K2WA-B | 1200W HVDC Power Module (Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PDC-1K2WA-F | 1200W DC Power Module (Front to Back, Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PDC-1K2WA-B | 1200W DC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI |
| PAC-600WA-F | 600W AC Power Module (Front to Back, Power panel side intake) Applicable CE8850-32CQ-EI |
| PAC-600WA-B | 600W AC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-32CQ-EI |
| PDC600S12-CF | 600W DC Power Module (Front to Back, Power panel side intake) Applicable CE8850-32CQ-EI |
| PDC600S12-CB | 600W DC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-32CQ-EI |
| CE88-LIC-VXLAN | CloudEngine 8800 VXLAN Function |
| CE88-LIC-BUN01 | CE8800 Function License Bundle 1 |
| CE88-LIC-TLM | CE8800 Telemetry Function |
| CE88-LIC-PTP | CE8800 Precision Time Protocol Function (Supported only by CE8850-64CQ-EI) |
| CE88-LIC-AIF | CloudEngine 8800 AI Fabric Function (Supported only by CE8850-64CQ-EI & CE8861) |
| N1-CE88LIC-CFMM | N1-CloudFabric Management SW License for CloudEngine 8800 |
| N1-CE88CFMM-SnS1Y | N1-CloudFabric Management SW License for CloudEngine 8800 -SnS-1 Year |
| N1-CE88LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 8800 |
| N1-CE88CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 8800-SnS-1 Year |
| N1-CE88LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 8800 |
| N1-CE88CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine 8800-SnS-1 Year |
| N1-CE88LIC-AIF | N1-CloudEngine 8800 AI Fabric Function |
| N1-CE88AIF- SnS1Y | N1-CloudEngine 8800 AI Fabric Function-SnS-1 Year |
Huawei CloudEngine 8865-SAN-4C Networking and Applications
