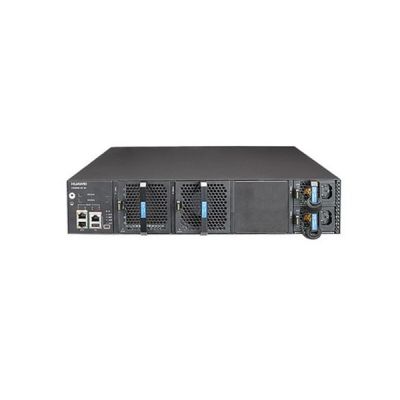

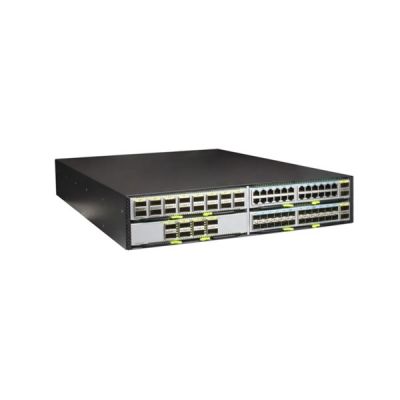

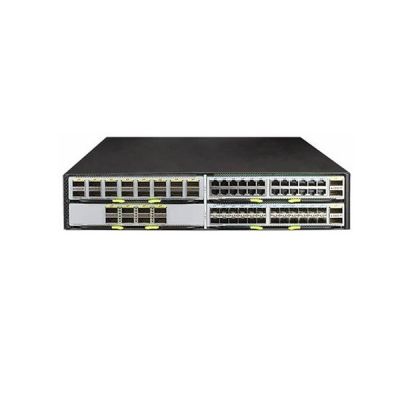

CloudEngine 8860-4C-EI
9000.26
Details
Huawei CloudEngine 8860-4C-EI is a next-generation 40G Ethernet switch designed for data centers and high-end campus networks. The product provides high-performance, highdensity 40GE ports, and low latency. At the same time, the CE8800 hardware has an advanced architectural design with 100GE/40GE/25GE/10GE ports. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data center service features and high stacking capability. Moreover, the airflow direction (front-to back or back-to-front) can be changed. CE8800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.
CE8800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.
Furthermore, CE8800 supports Zero Touch Provisioning (ZTP). ZTP enables the CE8800 to automatically obtain and load version files from a USB flash drive or file server, freeing network engineers from onsite configuration or deployment. ZTP reduces labor costs and improves device deployment efficiency.

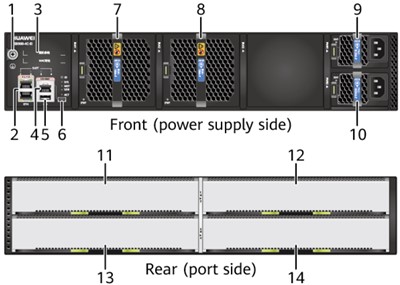

| 1, Ground screw | 2, Two ETH management ports (RJ45) |
| 3, ESN and MAC address label | 4, Console port |
| 5, USB port | 6, Mini USB port |
| 7, Fan slot 1 | 8, Fan slot 2 |
| 9, Power supply slot 1 | 10, Power supply slot 2 |
| 11, Extended card slot 1 | 12, Extended card slot 2 |
| 13, Extended card slot 3 | 14, Extended card slot 4 |

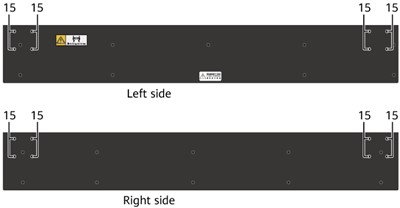

| 15, Mounting holes for mounting brackets |
Huawei CloudEngine 8860-4C-EI Specifications
| Part Number | Part Model | Part Description |
| 02350SUK | CE8860-4C-EI | CE8860-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box and Power Module) |
| 02350RMX | CE8860-EI-B-B0C | CE8860EI Bundle (CE8860-4C-EI Mainframe, 1*CE88-D24S2CQ Interface Card, 1*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake) |
| 02350RMW | CE8860-EI-F-B0C | CE8860EI Bundle (CE8860-4C-EI Mainframe, 1*CE88-D24S2CQ Interface Card, 1*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust) |
| 02350NBR | CE8860-EI-B-B00 | CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24T2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake) |
| 02350NBS | CE8860-EI-B-B0A | CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24S2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake) |
| 02350NBP | CE8860-EI-B-B0B | CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Intake) |
| 02350NBM | CE8860-EI-F-B00 | CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24T2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust) |
| 02350NBL | CE8860-EI-F-B0A | CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D24S2CQ Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust) |
| 02350NBJ | CE8860-EI-F-B0B | CE8860EI Bundle (CE8860-4C-EI Mainframe, 4*CE88-D16Q Interface Card, 2*AC Power Module, 2*FAN Box, Port-side Exhaust) |
| Physical specifications | Dimensions (W x D x H): 442.0 mm x 600.0 mm x 88.1 mm (17.4 in. x 23.6 in. x 3.47 in.) | |
| Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 21.2 kg | ||
| Environment parameters | Temperature | Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | ||
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) | Back-to-front airflow: < 58 dBA | |
| Front-to-back airflow: < 56 dBA | ||
| Power specifications | Power source type | AC/DC/high-voltage DC |
| AC power input | Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz | |
| Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz | ||
| DC power input | Rated voltage range: -48 V DC to -60 V DC | |
| Maximum voltage range: -38.4 V DC to -72 V DC | ||
| High-voltage DC power input | Rated voltage of 240 V high-voltage DC power input: 240 V DC | |
| Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC | ||
| Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC | ||
| Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC | ||
| Rated input current | 1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC) | |
| 1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC) | ||
| 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC) | ||
| Surge protection |
Power module:
|
|
| AC: 4 kV in common mode and 2.5 kV in differential mode | ||
| DC: 4 kV in common mode and 2 kV in differential mode | ||
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, which is determined by features of fan modules and power modules | |
| Reliability and availability | Power module backup | 1+1 backup |
| Fan module backup | Two fan modules, working in 1+1 backup mode when the temperature is below 35°C | |
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 40.88 years | |
| Mean time to repair (MTTR) | 1.75 hours | |
| Availability | 0.999995115 | |
| Technical specifications | Processor | 1.5 GHz, quad-core |
| DRAM Memory | 4 GB | |
| NOR Flash | 16 MB | |
| NAND Flash | 1 GB | |
| Stack | Service port supporting the stack function | See the description of ports on each card. |
| Certification | Safety standards compliance EMC standards compliance Environmental standards compliance |
|
Huawei CloudEngine 8860-4C-EI Features
l CE8860 supports 25GE (SFP28)/10GE (SFP+) auto-sensing interfaces and is applicable to scenarios of high-density 25GE/10GE server access.
l CE8860 supports a maximum of 32*100GE, 64*40GE, or 128*25GE/10GE ports, delivering high-density access and aggregation capabilities through flexible card combinations.
l CE8800 provides 6.4 Tbit/s switching capacity in a 2 U TOR, forwarding performance of 2,976 Mpps, and supports L2/L3 line-speed forwarding.
l CE8800 provides a maximum of 32*100GE QSFP28 and 64*40GE QSFP+ ports, and can function as the core or aggregation switch on a data center or campus network.
l 100GE QSFP28 port supports 100GE optical modules. Each 100GE port can be used as four 25GE SFP28 ports. The 100GE QSFP28 port also supports 40GE QSFP+ optical modules. 40GE ports can be converted to 10GE ports through QSFP+ breakout cable.
l CE8860 supports 100GE/40GE/25GE/10GE flexible cards, delivering flexible networking capability. It can work with CE12800/CE7800/CE6800/CE5800 series data center switches to build a non-blocking network platform.
Huawei CloudEngine 8860-4C-EI Ordering Info
| CE8860-4C-EI-F | CE8860-4C-EI switch (4 subcard slots, with airflow from the fan module panel to the front panel (with ports), without power module) |
| CE8860-4C-EI-B | CE8860-4C-EI switch (4 slots, with airflow from the front panel (with ports) to the fan module panel, without power module) |
| CE88-D8CQ | 8-port 100G Ethernet optical (QSFP28) subcard |
| CE88-D16Q | 16-port 40G Ethernet optical (QSFP+) subcard |
| CE88-D24T2CQ | 24-port 10G Ethernet electrical (RJ45) and 2-port 100G Ethernet optical (QSFP28) subcard |
| CE88-D24S2CQ | 24-port 10G Ethernet optical (SFP+) and 2-port 100G Ethernet optical (QSFP28) subcard |
| PAC-1K2WA-F | 1200 W AC & 240 V DC power module with airflow from the power module panel to the front panel (with ports) |
| PAC-1K2WA-B | 1200 W AC & 240 V DC power module, with airflow from the front panel (with ports) to the power module panel |
| PHD-1K2WA-F | 1200 W high-voltage DC power module with airflow from the power module panel to the front panel (with ports) |
| PHD-1K2WA-B | 1200 W high-voltage DC power module, with airflow from the front panel (with ports) to the power module panel |

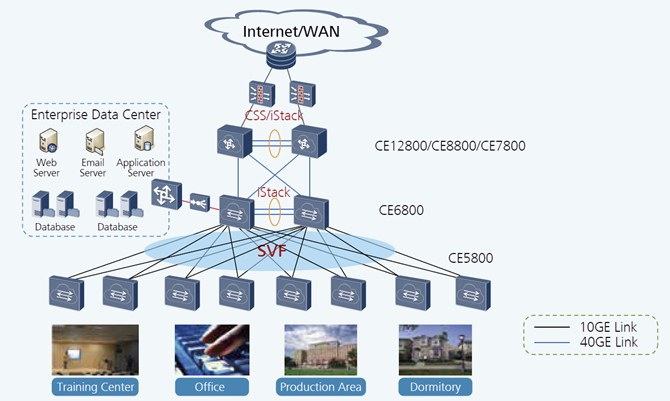

Huawei CloudEngine 8860-4C-EI Networking and Applications
More Information
| Brand | Huawei |
|---|
