Fiberhome small OLT with 2 service slots, GE/10GE uplink, EPON, GPON, 10G EPON, XGPON, XGSPON, GPON & XGPON, GPON & XGSPON, AC/DC Power

- +
Availability:In stock
SKU Fiberhome AN5516-04 OLT
Brand Fiberhome

Fiberhome AN5516-04 OLT is a new generation intelligent carrier-grade access product with MSAN/EPON/GPON/10GEPON/XG-PON integrated. This can provide large-capacity, high-bandwidth, low-cost voice, data and video service access solutions, and has the advantages of miniaturization and easy equipment deployment under limited conditions, meeting the current rapid growth of network services for full coverage demand. At the same time, the ability of this device to support traditional copper wire access services has greatly improved its service compatibility, effectively promoting the evolution of traditional access services.

Fiberhome AN5516-04 OLT Specifications

Brand Fiberhome
Model No. AN5516-04
Dimension: 600*430*230mm
Operating Environment Temperature: -40℃~+65
Humidity:5%~95% (non-condensing
Power Supply Parameters -48V DC input Supports dual power protection
Working Voltage range  -38.4V-72V
Backplane Exchange capacity 1.5Tbit/s
Control Board Exchange Capacity 960Gbit/s
Access Capacity 48*10G EPON
24*10G GPON
Access Type Upstream interface: 10GE optical, GE optical/electricity
Service interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
System Performance Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock
Maximum support 1:256 splitting ratio
Maximum support 60KM logical distance

Fiberhome AN5516-04 OLT Feature

l  Super access capability

Large-capacity, high-density carrier-grade multi-Gigabit platform, single frame supports 256 PON ports

Provide 10 Gigabit high-speed uplink boards: 1*10GE+ 4*GE, 2*10GE+ 2*GE, 6*GE (optical and electrical optional)

Support STM-1/E1 dedicated line upstream interface, support maximum 16×16GE dedicated line downstream interface

1: 32/64/128 optical split ratio, support ultra-long transmission distance, support CLASS C+ optical module

The maximum differential distance of different ONUs under the same PON port is not less than 40 kilometers

l  Full service access

Provide broadband, voice, IPTV, CATV, TDM and other comprehensive service access

Support IEEE 1588V2 protocol, support 1PPS+TOD clock input

Support OSPF, VRRP, RIP and other three-layer functional protocols

EPON/GPON/10G PON/P2P common platform, supporting smooth evolution of FTTX

l  High reliability optimized design

Standard 19-inch structure supports 16 service slots

Full front board, front outlet design

Support hot swap of all boards and PON optical modules

Support business board, main control, uplink master and backup redundancy protection

End-to-end protection: uplink port dual-homing/RSTP/LACP protection, PON port TYPE B/C protecti

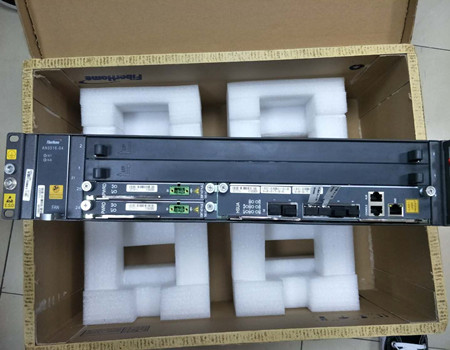

Fiberhome AN5516-04 OLT YCICTFiberhome AN5516-04 OLT YCICT
