Fiberhome hybrid central office large-scale OLT equipment meeting the requirements of next-generation optical networks for the high-speed, multi-service, and wide coverage

- +
Availability:In stock
SKU Fiberhome AN5516-01
Brand Fiberhome

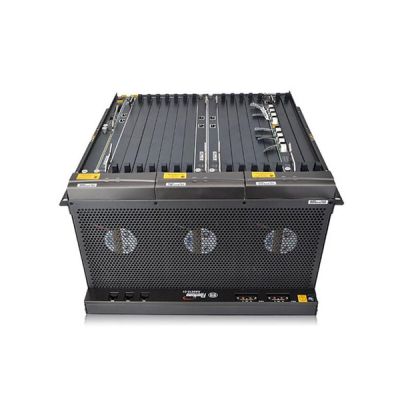

Fiberhome AN5516-01 is a hybrid central office equipment (OLT) designed and developed by Fiberhome for the high-speed, multi-service, and wide coverage requirements of next-generation optical networks. It is compatible with multiple optical access methods such as EPON, GPON and 10G PON, and meets FTTX. Various application scenarios require a new generation of large-capacity carrier-grade optical fiber access equipment.

Fiberhome AN5516-01 is positioned to the following applications : the central office equipment OLT in the FTTx solution, it is used in conjunction with the remote equipment ONU to support broadband services such as VoIP, TDM, IPTV, CATV and Internet access.

The market positioning of AN5516 equipment is as follows: carrier-grade FTTx central office equipment, high-density, providing solutions for fixed-line broadband access, broadcasting and television optical network transformation, power distribution network automation, railway team informatization, and commercial building e-commerce.

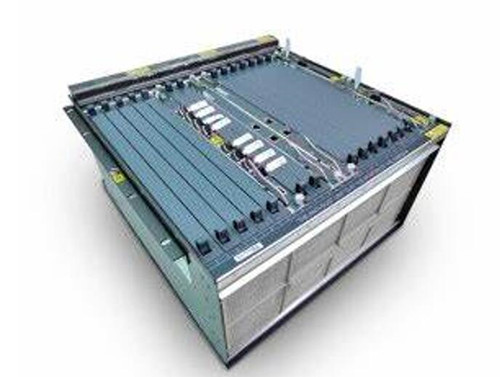

Fiberhome AN5516-01 YCICT

Fiberhome AN5516-01 Specifications
Brand Fiberhome
Model No. AN5516-01
Dimension: 620*620*440mm
Operating Environment Temperature: -25℃~+55
Humidity:5%~95% (non-condensing)
Power Supply Parameters -48V DC input Supports dual power protection Working Voltage range  -38.4V-72V
Backplane Exchange capacity 3.2Tbit/s
Control Board Exchange Capacity 1920 Gbit/s
Access Capacity 128*10G EPON
64*10G GPON
Access Type Upstream interface: 10GE optical, GE optical/electricity
Service interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
System Performance Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock
Maximum support 1:256 splitting ratio
Maximum support 60KM logical distance
Fiberhome AN5516-01 Features

l  Rich interface types

Fiberhome AN5516-01 supports a variety of physical interface types, uplink interfaces include: 10GE optical interface, GE optical interface, GE electrical interface, E1 electrical interface, STM-1 optical interface; user interface includes: EPON optical interface, GPON optical interface; in addition, it also provides Various management interfaces, dry contact interfaces and clock alarm interfaces, etc.

l  EPON/GPON/10G EPON integrated access capability

Fiberhome AN5516-01 is an EPON/GPON/10G EPON integrated access device, which can realize the hybrid access of EPON/GPON/10G EPON services. It supports the EPON function specified by the IEEE802.3ah-2005 standard, and strictly complies with the ITU-T G.984 series of standards; it has good interoperability, supports extended OAM functions, has good backward compatibility, and supports multiple types of ONUs, such as : SFU, box MDU (including LAN type and xDSL type), plug-in MDU and HGU type ONU, etc., provide large-capacity PON transmission bandwidth.

l  Multicast function

Fiberhome AN5516-01 has the point-to-multipoint structure of the PON network and supports multicast protocols. Using the multicast feature, you can easily provide users with some new value-added services, including online live broadcast, Internet radio, Internet TV, telemedicine, distance education, real-time video conferencing and other Internet information services
